DABTMT07M Adaptor – DME&JDE Group

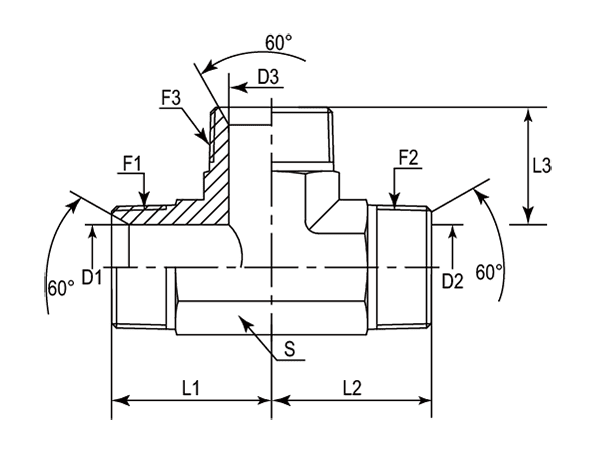

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	D1	D2	D3	L1	L2	L3	S
-01	DABTMT07M-0202	1/8"-28	1/8"-28	1/8"-28	4.50	4.50	4.50	21.00	21.00	21.00	11
-04	DABTMT07M-0404	1/4"-19	1/4"-19	1/4"-19	6.00	6.00	6.00	25.50	25.50	25.50	14
-06	DABTMT07M-0606	3/8"-19	3/8"-19	3/8"-19	9.00	9.00	9.00	28.50	28.50	28.50	19
-08	DABTMT07M-0808	1/2"-14	1/2"-14	1/2"-14	12.00	12.00	12.00	36.00	36.00	36.00	22
-12	DABTMT07M-1212	3/4"-14	3/4"-14	3/4"-14	16.70	16.70	16.70	40.00	40.00	40.00	27
-16	DABTMT07M-1616	1"-11	1"-11	1"-11	22.20	22.20	22.20	50.00	50.00	50.00	33
-20	DABTMT07M-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	28.60	28.60	28.60	57.50	57.50	57.50	41
-24	DABTMT07M-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	33.30	33.30	33.30	59.20	59.20	59.20	47.63
-32	DABTMT07M-3232	2"-11	2"-11	2"-11	46.00	46.00	46.00	75.00	75.00	75.00	63
