DABTM100B Adaptor – DME&JDE Group

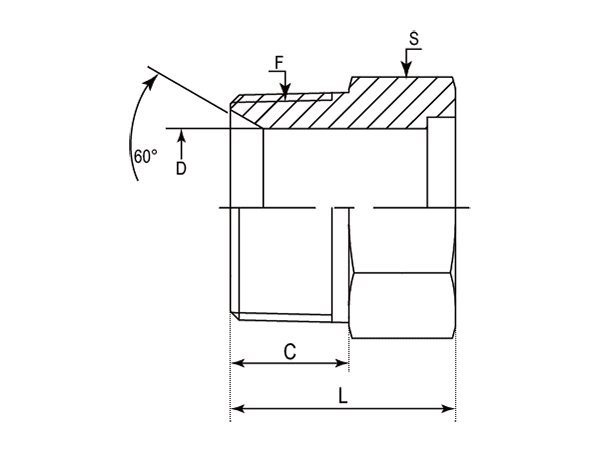

-	Part Number	F (Thread)	C	D	L	S	Cross Number
-01	DABTM100B-0406	1/4"-19	14.00	6.00	23.50	14.00	BM-04-04
-01	DABTM100B-0410	1/4"-19	14.00	6.00	24.50	14.00	BM-04-06
-06	DABTM100B-0610	3/8"-19	15.00	6.00	25.00	19.00	BM-06-06
-06	DABTM100B-0612	3/8"-19	15.00	9.00	25.00	19.00	BM-06-08
-08	DABTM100B-0812	1/2"-14	19.00	12.00	32.00	22.00	BM-08-08
-08	DABTM100B-0816	1/2"-14	19.00	12.00	33.00	22.00	BM-08-10
-08	DABTM100B-0820	1/2"-14	19.00	12.00	36.00	24.00	BM-08-12
-12	DABTM100B-1220	3/4"-14	20.00	16.70	36.00	30.00	BM-12-12
-12	DABTM100B-1225	3/4"-14	20.00	16.70	37.00	32.00	BM-12-16
-16	DABTM100B-1625	1"-11	24.00	22.20	42.50	36.00	BM-16-16
-32	DABTM100B-3250	2"-11	30.00	46.00	47.00	66.68	BM-32-32
