DABPM905T Adaptor – DME&JDE Group

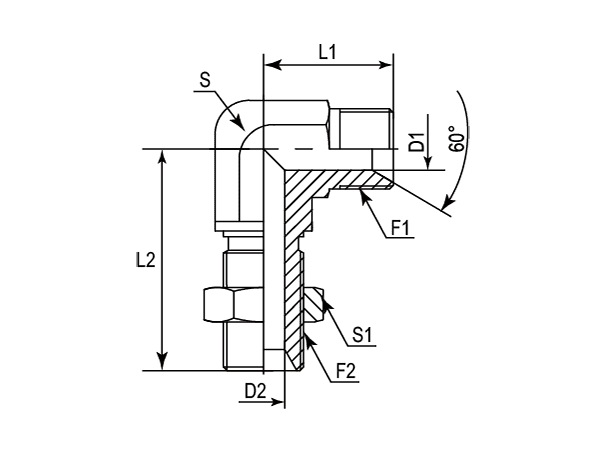

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1
-01	DABPM905T-0202	1/8"-28	1/8"-28	21.00	38.00	3.50	3.50	11.00	14.00
-04	DABPM905T-0404	1/4"-19	1/4"-19	25.00	45.00	4.70	4.70	14.00	19.00
-06	DABPM905T-0606	3/8"-19	3/8"-19	30.00	52.00	7.90	7.90	19.00	22.00
-08	DABPM905T-0808	1/2"-14	1/2"-14	34.00	58.00	11.10	11.10	22.00	27.00
-10	DABPM905T-1010	5/8"-14	5/8"-14	38.00	59.00	14.00	14.00	27.00	30.00
-12	DABPM905T-1212	3/4"-14	3/4"-14	40.00	65.00	16.70	16.70	27.00	32.00
-16	DABPM905T-1616	1"-11	1"-11	45.00	71.00	22.20	22.20	33.00	41.00
-20	DABPM905T-2020	1-1/4"-11	1-1/4"-11	52.00	77.00	28.60	28.60	41.00	50.00
-24	DABPM905T-2424	1-1/2"-11	1-1/2"-11	60.00	87.00	33.30	33.30	48.00	55.00
-32	DABPM905T-3232	2"-11	2"-11	65.00	97.00	46.00	46.00	65.00	70.00
