DABTM407M Adaptor – DME&JDE Group

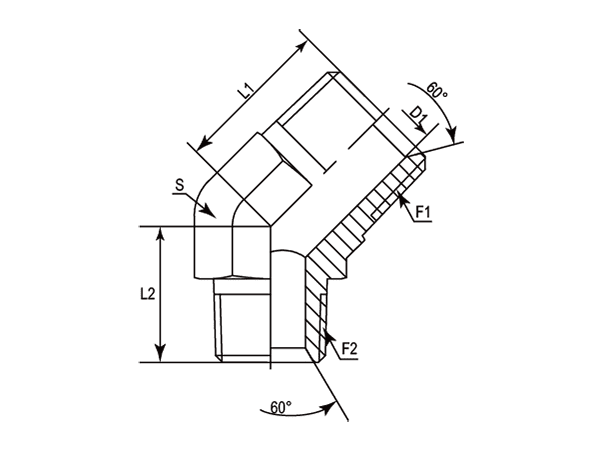

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	L1	L2	S	Cross Number
-01	DABTM407M-0202	1/8"-28	1/8"-28	4.50	4.50	17.00	17.00	11.00	CJJ-02-02
-04	DABTM407M-0404	1/4"-19	1/4"-19	6.00	6.00	21.00	21.00	14.00	CJJ-04-04
-06	DABTM407M-0606	3/8"-19	3/8"-19	9.00	9.00	23.00	23.00	19.00	CJJ-06-06
-08	DABTM407M-0808	1/2"-14	1/2"-14	12.00	12.00	29.50	29.50	22.00	CJJ-08-08
-12	DABTM407M-1208	3/4"-14	1/2"-14	16.70	12.00	30.50	30.00	27.00	CJJ-12-08
-12	DABTM407M-1212	3/4"-14	3/4"-14	16.70	16.70	30.50	30.50	27.00	CJJ-12-12
-16	DABTM407M-1612	1"-11	3/4"-14	22.20	16.70	38.00	32.50	33.00	CJJ-16-12
-16	DABTM407M-1616	1"-11	1"-11	22.20	22.20	38.00	38.00	33.00	CJJ-16-16
-20	DABTM407M-2020	1-1/4''-11	1-1/4''-11	28.60	28.60	43.00	43.00	41.00	CJJ-20-20
-24	DABTM407M-2424	1-1/2''-11	1-1/2''-11	33.30	33.30	45.00	45.00	48.00	CJJ-24-24
