DABPM1521 Adaptor – DME&JDE Group

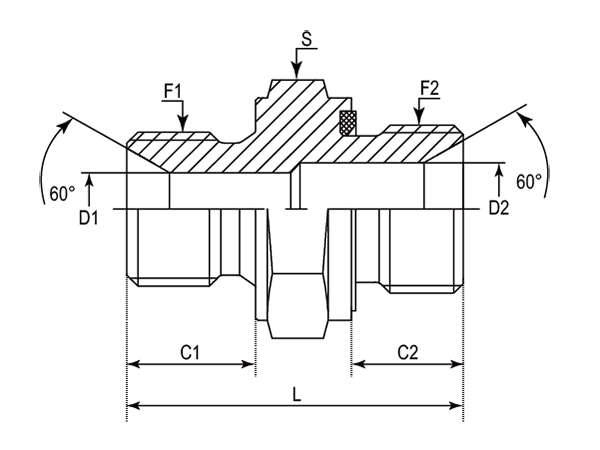

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S
-01	DABPM1521-0414	1/4"-19	M14X1.5	11.00	12.00	4.70	6.00	32.50	19.00
-01	DABPM1521-0418	1/4"-19	M18X1.5	11.00	12.00	4.70	9.00	33.00	24.00
-06	DABPM1521-0614	3/8"-19	M14X1.5	12.00	12.00	6.50	6.50	35.00	22.00
-06	DABPM1521-0618	3/8"-19	M18X1.5	12.00	12.00	7.90	7.90	35.00	24.00
-06	DABPM1521-0622	3/8"-19	M22X1.5	12.00	14.00	7.90	12.00	37.00	27.00
-08	DABPM1521-0818	1/2"-14	M18X1.5	14.00	12.00	11.10	19.00	37.00	27.00
-08	DABPM1521-0824	1/2"-14	M24X1.5	14.00	14.00	11.10	15.00	42.00	30.00
-12	DABPM1521-1222	3/4"-14	M22X1.5	16.00	14.00	16.70	12.00	44.00	32.00
