* Filter the F1 Thread through selecting the -XX options

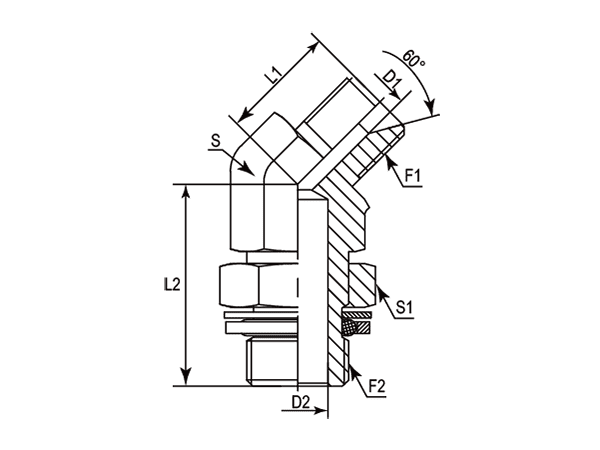

| - | Part Number | F1 (Thread) | F2 (Thread) | L1 | L2 | D1 | D2 | S | S1 |
|---|---|---|---|---|---|---|---|---|---|
| - | - | BSPP | BSPP | mm | mm | mm | mm | mm | mm |
| -01 | DABPM406Q-0202 | 1/8"-28 | 1/8"-28 | 18.00 | 26.00 | 3.50 | 4.40 | 11.10 | 14.00 |
| -04 | DABPM406Q-0404 | 1/4"-19 | 1/4"-19 | 21.00 | 28.00 | 4.70 | 7.50 | 14.00 | 19.00 |
| -04 | DABPM406Q-0406 | 1/4"-19 | 3/8"-19 | 20.00 | 33.00 | 4.70 | 9.90 | 19.00 | 22.00 |
| -06 | DABPM406Q-0604 | 3/8"-19 | 1/4"-19 | 21.00 | 32.00 | 7.90 | 7.50 | 19.00 | 19.00 |
| -06 | DABPM406Q-0606 | 3/8"-19 | 3/8"-19 | 21.06 | 33.00 | 7.90 | 9.90 | 19.00 | 22.00 |
| -06 | DABPM406Q-0608 | 3/8"-19 | 1/2"-14 | 22.50 | 38.60 | 7.90 | 12.30 | 22.00 | 27.00 |
| -08 | DABPM406Q-0806 | 1/2"-14 | 3/8"-19 | 24.30 | 34.50 | 11.10 | 9.90 | 22.00 | 22.00 |
| -08 | DABPM406Q-0808 | 1/2"-14 | 1/2"-14 | 24.30 | 38.60 | 11.10 | 12.30 | 22.00 | 27.00 |
| -12 | DABPM406Q-1212 | 3/4"-14 | 3/4"-14 | 27.50 | 43.90 | 16.70 | 15.50 | 27.00 | 36.00 |
| -16 | DABPM406Q-1616 | 1"-11 | 1"-11 | 37.00 | 47.20 | 22.20 | 21.50 | 33.00 | 41.00 |
| -20 | DABPM406Q-2020 | 1-1/4"-11 | 1-1/4"-11 | 40.00 | 49.00 | 28.60 | 27.50 | 41.00 | 50.00 |
| -24 | DABPM406Q-2424 | 1-1/2"-11 | 1-1/2"-11 | 45.00 | 50.00 | 33.30 | 30.00 | 48.00 | 55.00 |
| -32 | DABPM406Q-3232 | 2"-11 | 2"-11 | 52.50 | 50.50 | 46.00 | 45.00 | 63.50 | 70.00 |
