DABTF407F 45° Elbow Connector BSPT Fixed Female - BSPT Fixed Female

  • DCompanyDME
  • AProduct RangeAdaptor
  • BTThread TypesBSPT
  • FConnection TypeFemale
  • 4Adaptor Structure45° Elbow
  • 07Thread TypesBSPT
  • FConnection TypeFemale
  • DME&JDE Code: DABTF407F
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: 45° Elbow
  • Connection Type: Fixed Female × Fixed Female
  • Thread Types: BSPT × BSPT
Technical Data of DABTF407F
  • -02
  • -04
  • -06
  • -08
  • -12
  • -16

* Filter the F1 Thread through selecting the -XX options

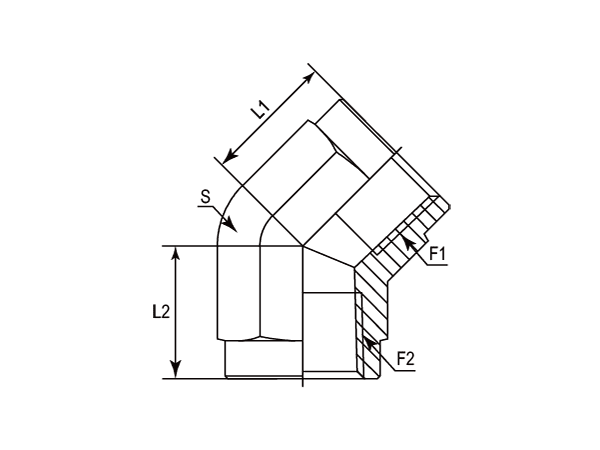

A drawing of DABTF407F hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) L1 L2 S
- - BSPT BSPT mm mm mm
-01 DABTF407F-0202 1/8"-28 1/8"-28 12.70 12.70 14.28
-04 DABTF407F-0404 1/4"-19 1/4"-19 17.50 17.50 19.05
-06 DABTF407F-0606 3/8"-19 3/8"-19 19.10 19.10 22.22
-08 DABTF407F-0808 1/2"-14 1/2"-14 23.10 23.10 27.00
-12 DABTF407F-1212 3/4"-14 3/4"-14 25.40 25.40 33.32
-16 DABTF407F-1616 1"-11 1"-11 30.20 30.20 41.27
