DABTM107F Adaptor – DME&JDE Group

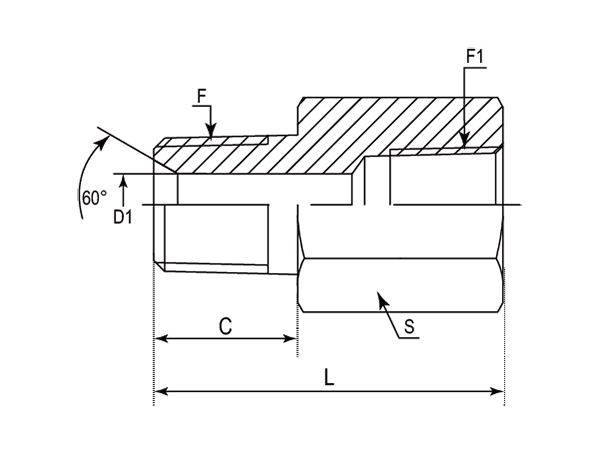

-	Part Number	F (Thread)	F1 (Thread)	C	D	L	S
-01	DABTM107F-0204	1/8"-28	1/4"-19	10.00	4.50	30.73	19.00
-04	DABTM107F-0404	1/4"-19	1/4"-19	14.00	6.00	34.00	19.00
-04	DABTM107F-0406	1/4"-19	3/8"-19	14.00	6.00	35.50	22.00
-04	DABTM107F-0408	1/4"-19	1/2"-14	14.00	6.00	41.00	27.00
-06	DABTM107F-0606	3/8"-19	3/8"-19	15.00	9.00	36.00	22.00
-06	DABTM107F-0608	3/8"-19	1/2"-14	15.00	9.00	42.00	27.00
-08	DABTM107F-0806	1/2"-14	3/8"-19	19.00	12.00	40.00	22.00
-08	DABTM107F-0812	1/2"-14	3/4"-14	19.00	12.00	48.00	33.00
-12	DABTM107F-1216	3/4"-14	1"-11	20.00	16.70	54.00	41.00
-16	DABTM107F-1620	1"-11	1-1/4''-11	24.00	22.20	63.00	50.00
