DABP19525 90° Adjustable Elbow BSPP Swivel Female 60° - Metric Male + O Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • 1Connection TypeSwivel Female
  • 9Adaptor Structure90° Elbow
  • 52Thread TypesMetric
  • 5Connection TypeMale + O Ring
  • DME&JDE Code: DABP19525
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: 90° Elbow
  • Connection Type: Adjustable Male × Swivel Female
  • Thread Types: BSPP 60° × Metric + O Ring
  • Sealing Method: O Rings
Technical Data of DABP19525
  • -02
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

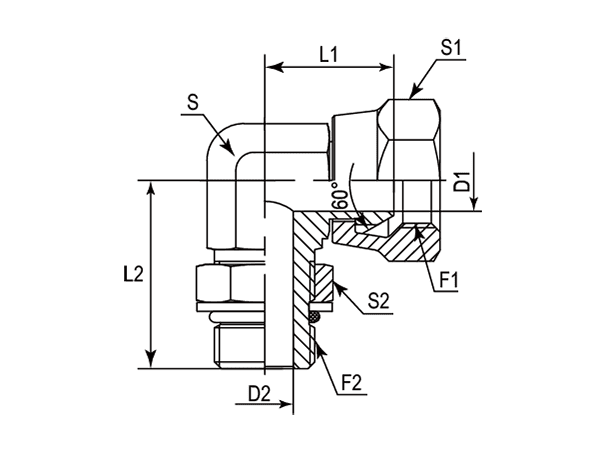

A drawing of DABP19525 hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 D1 D2 S S1 S2
- - BSPP Metric mm mm mm mm mm mm mm
-01 DABP19525-0210 1/8"-28 M10X1 20.50 27.00 3.50 4.50 11.00 14.00 14.00
-01 DABP19525-0212 1/8"-28 M12X1.5 22.50 31.50 3.50 6.00 14.00 14.00 17.00
-04 DABP19525-0412 1/4"-19 M12X1.5 24.00 31.50 4.50 6.00 14.00 19.00 17.00
-04 DABP19525-0414 1/4"-19 M14X1.5 24.00 31.50 4.50 7.50 14.00 19.00 19.00
-04 DABP19525-0416 1/4"-19 M16X1.5 26.00 37.00 4.50 9.00 19.00 19.00 22.00
-06 DABP19525-0614 3/8"-19 M14X1.5 26.00 34.00 7.90 7.50 19.00 22.00 19.00
-06 DABP19525-0616 3/8"-19 M16X1.5 26.00 37.00 7.90 9.00 19.00 22.00 22.00
-06 DABP19525-0618 3/8"-19 M18X1.5 26.00 38.00 7.90 11.00 19.00 22.00 24.00
-08 DABP19525-0818 1/2"-14 M18X1.5 28.50 41.00 11.10 11.00 19.00 27.00 24.00
-08 DABP19525-0820 1/2"-14 M20X1.5 28.50 43.00 11.10 12.50 22.00 27.00 27.00
-08 DABP19525-0822 1/2"-14 M22X1.5 28.50 43.00 11.10 14.00 22.00 27.00 27.00
-10 DABP19525-1022 5/8"-14 M22X1.5 28.50 45.00 12.00 14.00 22.00 30.00 27.00
-12 DABP19525-1222 3/4"-14 M22X1.5 37.00 46.00 16.70 14.00 27.00 32.00 27.00
-12 DABP19525-1226 3/4"-14 M26X1.5 37.00 50.00 16.70 17.00 27.00 32.00 32.00
-12 DABP19525-1227 3/4"-14 M27X2 37.00 50.00 16.70 18.00 27.00 32.00 32.00
-16 DABP19525-1627 1"-11 M27X2 42.00 52.00 22.20 18.00 33.00 41.00 32.00
-16 DABP19525-1633 1"-11 M33X2 42.00 53.00 22.20 23.00 33.00 41.00 41.00
-20 DABP19525-2042 1-1/4"-11 M42X2 50.00 58.00 28.60 30.00 41.00 50.00 50.00
-24 DABP19525-2448 1-1/2"-11 M48X2 53.50 67.00 33.30 36.00 48.00 55.00 55.00
