DABPFL07M Adaptor – DME&JDE Group

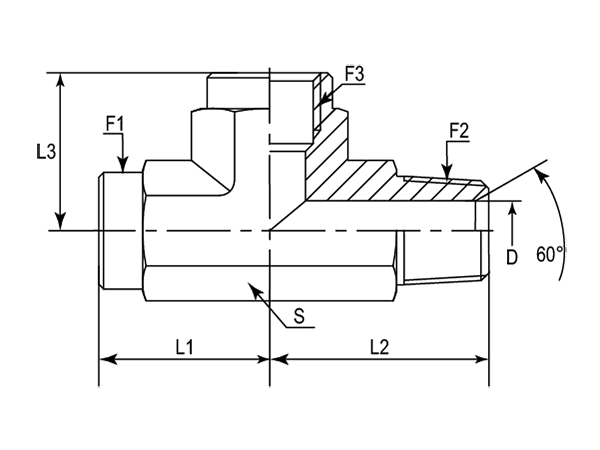

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D	S
-01	DABPFL07M-0202	1/8"-28	1/8"-28	1/8"-28	17.00	20.00	17.00	4.50	14
-04	DABPFL07M-0404	1/4"-19	1/4"-19	1/4"-19	22.50	28.00	22.50	6.00	19
-06	DABPFL07M-0606	3/8"-19	3/8"-19	3/8"-19	26.00	31.00	26.00	9.00	22
-08	DABPFL07M-0808	1/2"-14	1/2"-14	1/2"-14	31.00	37.50	31.00	12.00	27
-12	DABPFL07M-1212	3/4"-14	3/4"-14	3/4"-14	34.50	40.00	34.50	16.70	33
-16	DABPFL07M-1616	1"-11	1"-11	1"-11	41.00	50.00	41.00	22.20	41
-20	DABPFL07M-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	43.00	60.00	43.00	28.60	48
-24	DABPFL07M-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	53.00	67.00	53.00	33.30	65
-32	DABPFL07M-3232	2"-11	2"-11	2"-11	60.50	76.00	60.50	45.00	70
