DABPM9081-B 90° Swept Elbow BSPP Male 60° Cone - BSPP Swivel Female 60°

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • MConnection TypeMale
  • 9Adaptor Structure90° Elbow
  • 081Connection TypeBSPP Swivel Female
  • BElbow TypeSwept Elbow
  • DME&JDE Code: DABPM9081-B
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: 90° Elbow
  • Connection Type: Male × Swivel Female
  • Thread Types: BSPP 60° Cone × BSPP 60°
Technical Data of DABPM9081-B
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20

* Filter the F1 Thread through selecting the -XX options

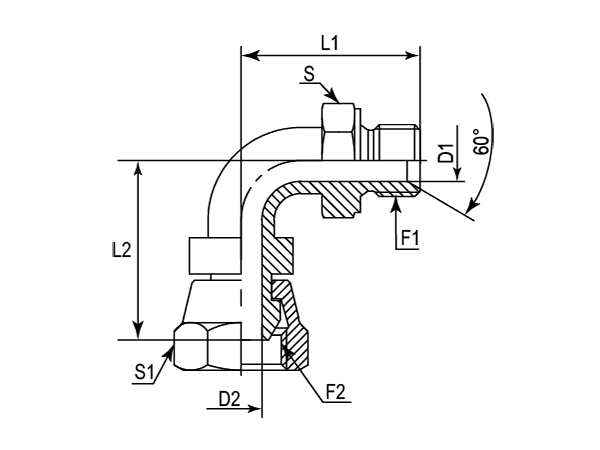

A drawing of DABPM9081-B hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) D1 D2 L1 L2 S S1
- - BSPP BSPP mm mm mm mm mm mm
-01 DABPM9081-0404B 1/4"-19 1/4"-19 4.00 4.00 30.00 32.50 19.00 19.00
-06 DABPM9081-0606B 3/8"-19 3/8"-19 7.00 7.00 37.00 39.00 22.00 22.00
-08 DABPM9081-0808B 1/2"-14 1/2"-14 10.00 10.00 45.00 47.00 27.00 27.00
-10 DABPM9081-1010B 5/8"-14 5/8"-14 13.00 13.00 52.00 52.00 30.00 30.00
-12 DABPM9081-1212B 3/4"-14 3/4"-14 15.00 15.00 54.00 57.00 32.00 32.00
-16 DABPM9081-1616B 1"-11 1"-11 19.00 19.00 68.00 69.00 41.00 41.00
-20 DABPM9081-2020B 1-1/4''-11 1-1/4''-11 26.00 26.00 100.00 86.00 50.00 50.00
