DABP1906Q 90° Adjustable Elbow BSPP Swivel Female 60° - BSPP Male + O Ring + Retaining Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • 1Connection TypeSwivel Female
  • 9Adaptor Structure90° Elbow
  • 06Thread TypesBSPP
  • QConnection TypeMale + O Ring + Retaining Ring
  • DME&JDE Code: DABP1906Q
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: 90° Elbow
  • Connection Type: Adjustable Male × Swivel Female
  • Thread Types: BSPP 60° × BSPP + O Ring + Retaining Ring
  • Sealing Method: O Ring + Retaining Ring
Technical Data of DABP1906Q
  • -02
  • -04
  • -06
  • -08
  • -12
  • -16
  • -20

* Filter the F1 Thread through selecting the -XX options

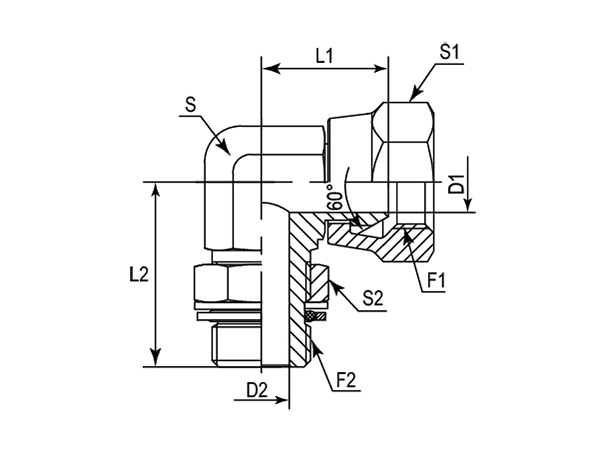

A drawing of DABP1906Q hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) L1 L2 D1 D2 S S1 S2
- - BSPP BSPP mm mm mm mm mm mm mm
-01 DABP1906Q-0202 1/8"-28 1/8"-28 22.00 26.00 3.50 4.40 11.00 14.00 14.00
-01 DABP1906Q-0204 1/8"-28 1/4"-19 22.00 31.50 3.50 7.50 14.00 14.00 19.00
-04 DABP1906Q-0404 1/4"-19 1/4"-19 24.00 31.50 4.70 7.50 14.00 19.00 19.00
-04 DABP1906Q-0406 1/4"-19 3/8"-19 26.00 36.50 4.70 9.90 19.00 19.00 22.00
-06 DABP1906Q-0604 3/8"-19 1/4"-19 28.00 34.50 7.90 7.50 19.00 22.00 19.00
-06 DABP1906Q-0606 3/8"-19 3/8"-19 28.00 37.00 7.90 9.90 19.00 22.00 22.00
-06 DABP1906Q-0608 3/8"-19 1/2"-14 28.50 43.00 7.90 12.30 22.00 22.00 27.00
-08 DABP1906Q-0806 1/2"-14 3/8"-19 28.50 39.50 11.10 9.90 22.00 27.00 22.00
-08 DABP1906Q-0808 1/2"-14 1/2"-14 28.50 43.00 11.10 12.30 22.00 27.00 27.00
-12 DABP1906Q-1212 3/4"-14 3/4"-14 37.90 50.00 16.70 15.50 27.00 32.00 36.00
-16 DABP1906Q-1616 1"-11 1"-11 42.00 53.00 22.20 21.50 33.00 41.00 41.00
-20 DABP1906Q-2020 1-1/4"-11 1-1/4"-11 52.00 58.00 27.50 27.50 41.00 50.00 50.00
