DABTFT07F Adaptor – DME&JDE Group

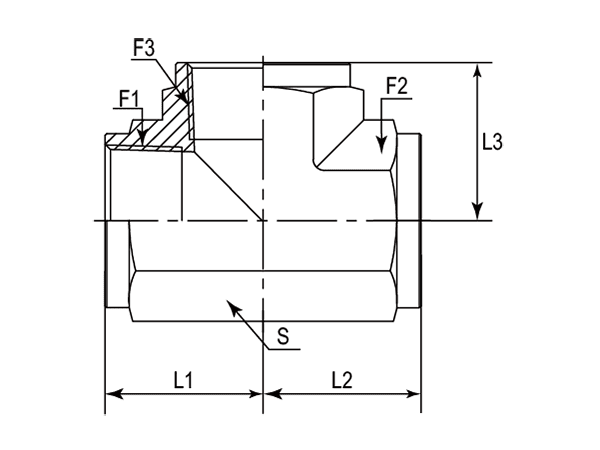

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	S
-01	DABTFT07F-0202	1/8"-28	1/8"-28	1/8"-28	20.00	20.00	20.00	14
-04	DABTFT07F-0404	1/4"-19	1/4"-19	1/4"-19	22.50	22.50	22.50	19
-06	DABTFT07F-0606	3/8"-19	3/8"-19	3/8"-19	26.00	26.00	26.00	22
-08	DABTFT07F-0808	1/2"-14	1/2"-14	1/2"-14	31.20	31.20	31.20	27
-12	DABTFT07F-1212	3/4"-14	3/4"-14	3/4"-14	34.50	34.50	34.50	33
-16	DABTFT07F-1616	1"-11	1"-11	1"-11	41.20	41.20	41.20	41
-20	DABTFT07F-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	43.20	43.20	43.20	48
-24	DABTFT07F-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	53.00	53.00	53.00	65
-32	DABTFT07F-3232	2"-11	2"-11	2"-11	62.00	62.00	62.00	71
