DABP1100B Adaptor – DME&JDE Group

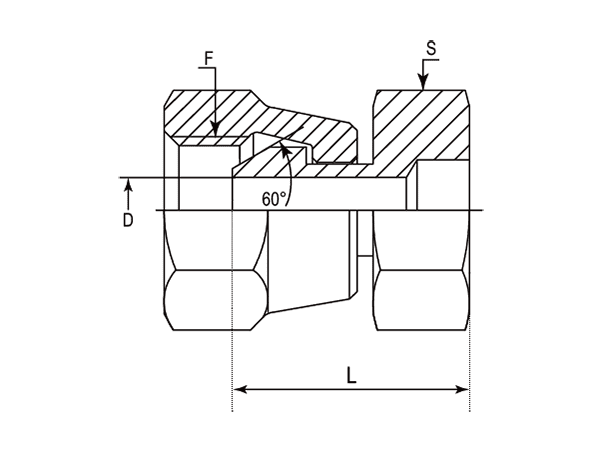

-	Part Number	F (Thread)	D	L	S	S1	Cross Number
-01	DABP1100B-0406	1/4"-19	4.7	20	14	19	BJ-04-04
-06	DABP1100B-0610	3/8"-19	7.90	22.00	17.00	22.00	BJ-06-06
-08	DABP1100B-0812	1/2"-14	11.10	24.00	19.00	27.00	BJ-08-08
-12	DABP1100B-1220	3/4"-14	16.70	31.00	27.00	32.00	BJ-12-12
-16	DABP1100B-1625	1"-11	22.20	33.00	32.00	41.00	BJ-16-16
-20	DABP1100B-2032	1-1/4''-11	28.60	37.50	41.00	50.00	BJ-20-20
-24	DABP1100B-2438	1-1/2''-11	33.30	40.00	50.00	55.00	BJ-24-24
