DABTM905F Adaptor – DME&JDE Group

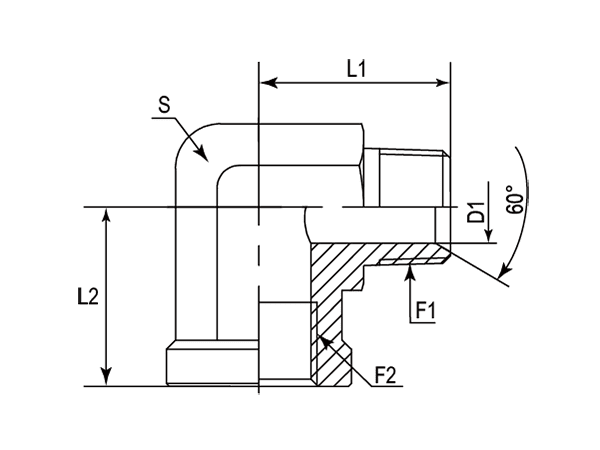

-	Part Number	F1 (Thread)	F2 (Thread)	D	L1	L2	S
-01	DABTM905F-0202	1/8"-28	1/8"-28	4.50	20.00	16.80	14.00
-04	DABTM905F-0404	1/4"-19	1/4"-19	6.00	27.00	22.00	19.00
-06	DABTM905F-0606	3/8"-19	3/8"-19	9.00	31.00	26.00	22.00
-08	DABTM905F-0808	1/2"-14	1/2"-14	12.00	37.50	32.00	27.00
-12	DABTM905F-1212	3/4"-14	3/4"-14	16.70	40.40	34.50	33.00
-16	DABTM905F-1616	1"-11	1"-11	22.20	50.00	41.50	41.00
