DABTM152F Adaptor – DME&JDE Group

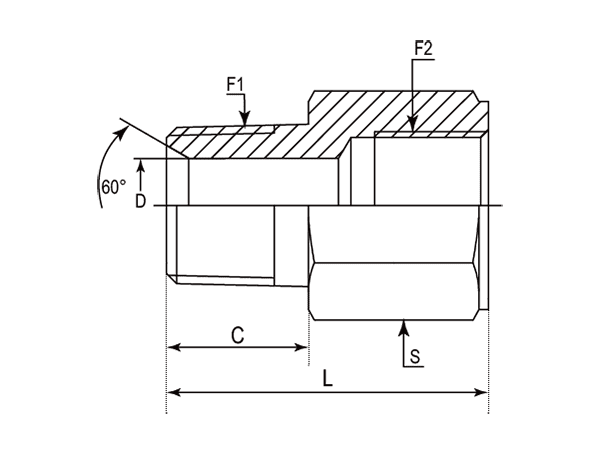

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S
-01	DABTM152F-0410	1/4"-19	M10X1	14.00	7.00	29.00	14.00
-01	DABTM152F-0414	1/4"-19	M14X1.5	14.00	7.00	33.00	19.00
-01	DABTM152F-0416	1/4"-19	M16X1.5	14.00	7.00	34.50	22.00
-01	DABTM152F-0418	1/4"-19	M18X1.5	14.00	7.00	35.00	24.00
-06	DABTM152F-0614	3/8"-19	M14X1.5	15.00	10.00	33.00	19.00
-06	DABTM152F-0616	3/8"-19	M16X1.5	15.00	10.00	34.00	22.00
-06	DABTM152F-0622	3/8"-19	M22X1.5	15.00	10.00	37.50	27.00
-08	DABTM152F-0818	1/2"-14	M18X1.5	19.00	12.00	37.50	24.00
-08	DABTM152F-0822	1/2"-14	M22X1.5	19.00	13.00	41.00	27.00
