DABTM9081 Adaptor – DME&JDE Group

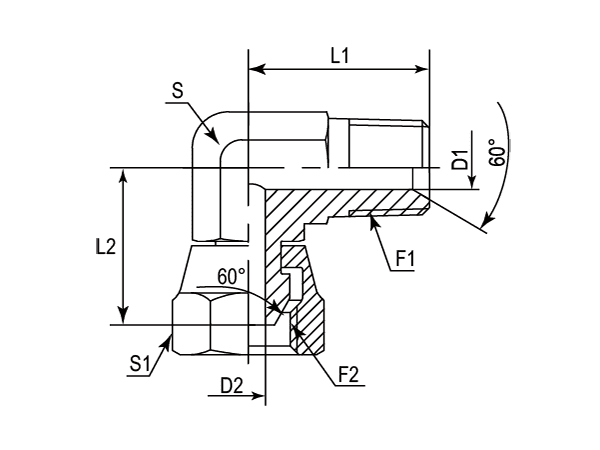

-	Part Number	F1 (Thread)	F2 (Thread)	D1	D2	L1	L2	S	S1	Cross Number
-01	DABTM9081-0202	1/8"-28	1/8"-28	4.50	3.50	20.00	18.80	11.00	14.00	CVD-02-02
-04	DABTM9081-0404	1/4"-19	1/4"-19	6.00	4.70	25.00	21.60	14.00	19.00	CVD-04-04
-04	DABTM9081-0406	1/4"-19	3/8"-19	6.00	7.90	28.00	25.60	19.00	22.00	CVD-04-06
-06	DABTM9081-0604	3/8"-19	1/4"-19	9.00	4.70	28.50	23.80	19.00	19.00	CVD-06-04
-06	DABTM9081-0606	3/8"-19	3/8"-19	9.00	7.90	28.50	25.60	19.00	22.00	CVD-06-06
-06	DABTM9081-0608	3/8"-19	1/2"-14	9.00	11.10	30.50	30.00	19.00	27.00	CVD-06-08
-08	DABTM9081-0806	1/2"-14	3/8"-19	12.00	7.90	36.00	28.20	22.00	22.00	CVD-08-06
-08	DABTM9081-0808	1/2"-14	1/2"-14	12.00	11.10	36.00	30.00	22.00	27.00	CVD-08-08
-08	DABTM9081-0812	1/2"-14	3/4"-14	12.00	16.70	40.00	35.30	27.00	32.00	CVD-08-12
-12	DABTM9081-1208	3/4"-14	1/2"-14	16.70	11.10	40.40	33.50	27.00	27.00	CVD-12-08
-12	DABTM9081-1212	3/4"-14	3/4"-14	16.70	16.70	40.40	35.30	27.00	32.00	CVD-12-12
-12	DABTM9081-1216	3/4"-14	1"-11	16.70	22.20	49.00	45.50	33.00	41.00	CVD-12-16
-16	DABTM9081-1612	1"-11	3/4"-14	22.20	16.70	50.00	44.50	33.00	32.00	CVD-16-12
-16	DABTM9081-1616	1"-11	1"-11	22.20	22.20	50.00	45.50	33.00	41.00	CVD-16-16
-20	DABTM9081-2020	1-1/4''-11	1-1/4''-11	28.60	28.60	58.00	52.50	41.00	50.00	CVD-20-20
-24	DABTM9081-2424	1-1/2''-11	1-1/2''-11	33.30	33.30	62.50	53.30	48.00	55.00	CVD-24-24
-32	DABTM9081-3232	2"-11	2"-11	46.00	44.00	75.00	60.00	65.00	70.00	CVD-32-32
