DABPF128F Adaptor – DME&JDE Group

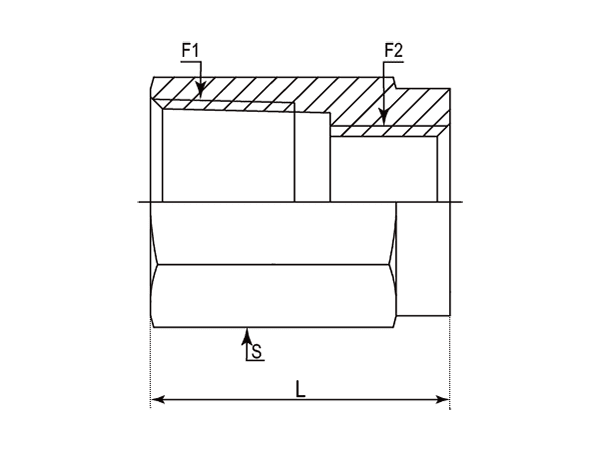

-	Part Number	F1 (Thread)	F2 (Thread)	L	S
-01	DABPF128F-0202	1/8"-28	1/8"-27	23.00	15.88
-04	DABPF128F-0404	1/4"-19	1/4"-18	30.00	19.00
-06	DABPF128F-0604	3/8"-19	1/4"-18	30.50	22.00
-06	DABPF128F-0606	3/8"-19	3/8"-18	30.50	22.00
-08	DABPF128F-0808	1/2"-14	1/2"-14	41.50	28.58
-12	DABPF128F-1212	3/4"-14	3/4"-14	46.80	34.93
-16	DABPF128F-1616	1"-11	1"-11-1/2	53.50	41.28
-20	DABPF128F-2016	1-1/4''-11	1"-11-1/2	55.50	50.00
-20	DABPF128F-2020	1-1/4''-11	1-1/4''-11-1/2	56.00	50.80
-24	DABPF128F-2424	1-1/2''-11	1-1/2''-11-1/2	58.50	60.00
-32	DABPF128F-3232	2"-11	2"-11-1/2	58.50	70.00
