DABPM100B Adaptor – DME&JDE Group

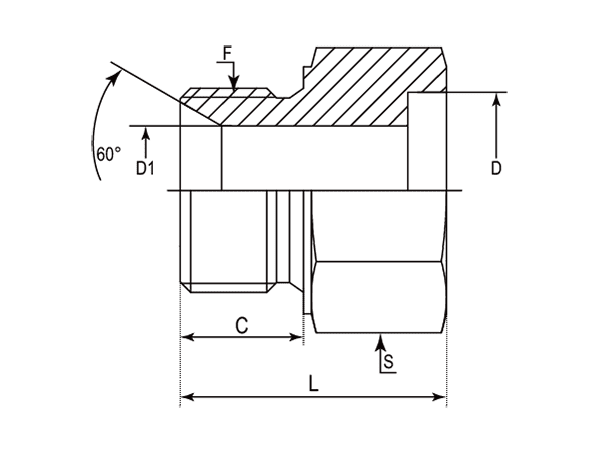

-	Part Number	F (Thread)	C	D1	D	L	S	Cross Number
-04	DABPM100B-0410	1/4"-19	11.00	4.70	9.60	22.00	19.00	BP-04-06
-06	DABPM100B-0612	3/8"-19	12.00	7.90	12.70	23.50	22.00	BP-06-08
-08	DABPM100B-0812	1/2"-14	14.00	11.10	12.70	30.00	27.00	BP-08-08
-08	DABPM100B-0820	1/2"-14	14.00	11.10	19.00	32.00	27.00	BP-08-12
-12	DABPM100B-1220	3/4"-14	16.00	16.70	19.00	34.50	32.00	BP-12-12
-16	DABPM100B-1625	1"-11	19.00	22.20	25.40	39.50	41.00	BP-16-16
-20	DABPM100B-2032	1-1/4"-11	20.00	28.60	31.80	39.50	50.00	BP-20-20
