DABPM1000-ED Adaptor – DME&JDE Group

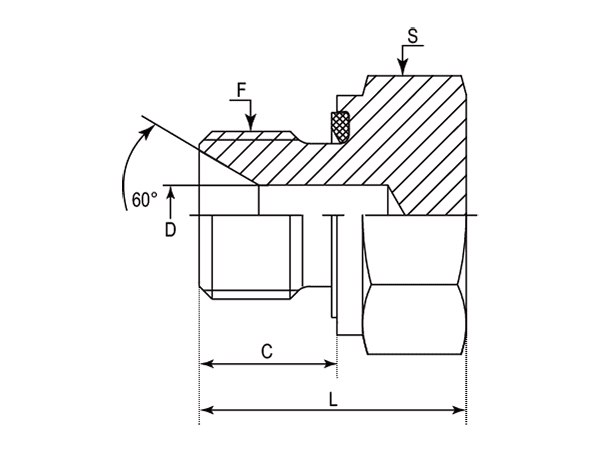

-	Part Number	F (Thread)	C	D	L	S	Cross Number
-01	DABPM1000-0200ED	1/8"-28	8.00	3.50	15.50	14.00	AP-02
-04	DABPM1000-0400ED	1/4"-19	12.00	4.70	20.00	19.00	AP-04
-06	DABPM1000-0600ED	3/8"-19	12.00	7.90	20.00	22.00	AP-06
-08	DABPM1000-0800ED	1/2"-14	14.00	11.00	25.00	27.00	AP-08
-12	DABPM1000-1200ED	3/4"-14	16.00	16.70	29.00	32.00	AP-12
-24	DABPM1000-2400ED	1-1/2''-11	22.00	33.30	39.00	55.00	AP-24
-32	DABPM1000-3200ED	2"-11	22.00	46.00	41.00	70.00	AP-32
