* Filter the F1 Thread through selecting the -XX options

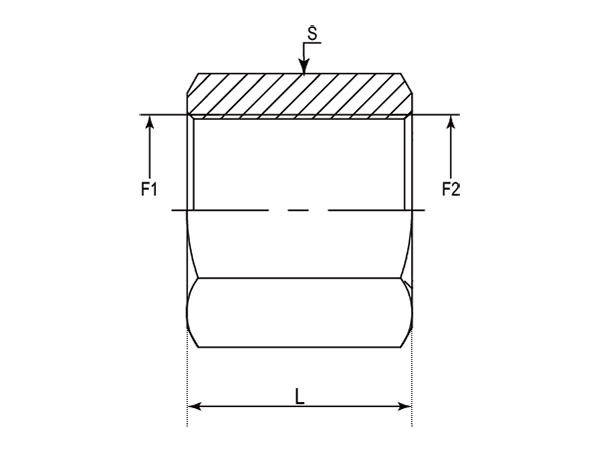

| - | Part Number | F1 (Thread) | F2 (Thread) | L | S |
|---|---|---|---|---|---|
| - | - | BSPP | BSPP | mm | mm |
| -01 | DABPF105F-0202 | 1/8"-28 | 1/8"-28 | 22.00 | 14.00 |
| -04 | DABPF105F-0402 | 1/4"-19 | 1/8"-28 | 24.00 | 19.00 |
| -04 | DABPF105F-0404 | 1/4"-19 | 1/4"-19 | 25.00 | 19.00 |
| -06 | DABPF105F-0602 | 3/8"-19 | 1/8"-28 | 27.00 | 22.00 |
| -06 | DABPF105F-0604 | 3/8"-19 | 1/4"-19 | 27.00 | 22.00 |
| -06 | DABPF105F-0606 | 3/8"-19 | 3/8"-19 | 27.00 | 22.00 |
| -08 | DABPF105F-0804 | 1/2"-14 | 1/4"-19 | 29.50 | 27.00 |
| -08 | DABPF105F-0806 | 1/2"-14 | 3/8"-19 | 30.50 | 27.00 |
| -08 | DABPF105F-0808 | 1/2"-14 | 1/2"-14 | 35.00 | 27.00 |
| -10 | DABPF105F-1008 | 5/8"-14 | 1/2"-14 | 40.00 | 30/32 |
| -10 | DABPF105F-1010 | 5/8"-14 | 5/8"-14 | 36.00 | 30.00 |
| -12 | DABPF105F-1206 | 3/4"-14 | 3/8"-19 | 40.00 | 32.00 |
| -12 | DABPF105F-1208 | 3/4"-14 | 1/2"-14 | 34.00 | 32.00 |
| -12 | DABPF105F-1212 | 3/4"-14 | 3/4"-14 | 40.00 | 32.00 |
| -16 | DABPF105F-1612 | 1"-11 | 3/4"-14 | 41.00 | 41.00 |
| -16 | DABPF105F-1616 | 1"-11 | 1"-11 | 45.00 | 41.00 |
| -20 | DABPF105F-2012 | 1-1/4''-11 | 3/4"-14 | 45.00 | 50.00 |
| -20 | DABPF105F-2016 | 1-1/4''-11 | 1"-11 | 50.00 | 50.00 |
| -20 | DABPF105F-2020 | 1-1/4"-11 | 1-1/4"-11 | 48.00 | 50.00 |
| -24 | DABPF105F-2420 | 1-1/2''-11 | 1-1/4"-11 | 50.00 | 60.00 |
| -24 | DABPF105F-2424 | 1-1/2"-11 | 1-1/2"-11 | 54.00 | 55.00 |
| -32 | DABPF105F-3220 | 2"-11 | 1-1/4"-11 | 55.00 | 70.00 |
| -32 | DABPF105F-3224 | 2"-11 | 1-1/2"-11 | 55.00 | 70.00 |
| -32 | DABPF105F-3232 | 2"-11 | 2"-11 | 60.00 | 70.00 |
| -40 | DABPF105F-4032 | 2-1/2"-11 | 2"-11 | 70.00 | 90.00 |
