DABPF407M Adaptor – DME&JDE Group

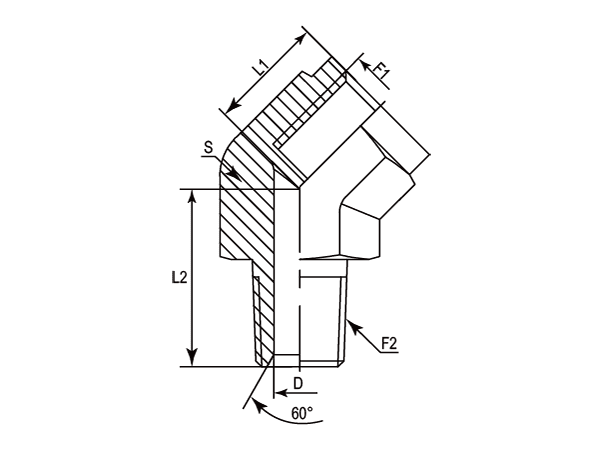

-	PART NUMBER	F1 (Thread)	F2 (Thread)	L1	L2	D	S
-01	DABPF407M-0202	1/8"-28	1/8"-28	15.50	18.00	4.50	14.00
-04	DABPF407M-0404	1/4"-19	1/4"-19	21.00	26.50	6.00	19.00
-06	DABPF407M-0606	3/8"-19	3/8"-19	22.00	27.00	9.00	22.00
-08	DABPF407M-0808	1/2"-14	1/2"-14	26.00	34.00	12.00	27.00
-12	DABPF407M-1212	3/4"-14	3/4"-14	29.50	35.00	16.70	33.00
-16	DABPF407M-1616	1"-11	1"-11	33.00	44.00	22.20	41.00
-20	DABPF407M-2020	1-1/4"-11	1-1/4"-11	39.00	45.50	28.60	48.00
-24	DABPF407M-2424	1-1/2"-11	1-1/2"-11	43.00	53.00	33.30	65.00
-32	DABPF407M-3232	2"-11	2"-11	55.00	57.00	45.00	70.00
