DABTM906Q Adaptor – DME&JDE Group

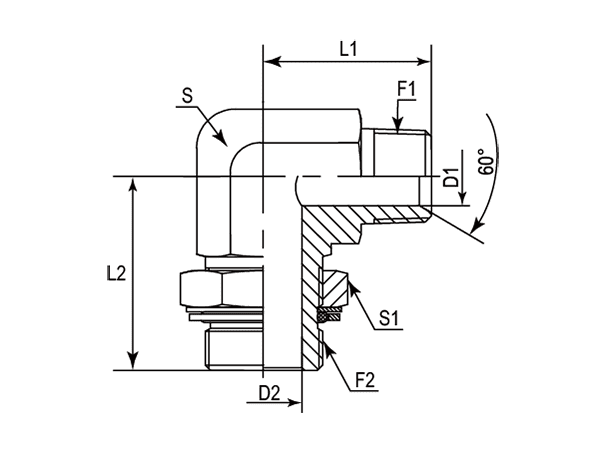

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1	Cross Number
-01	DABTM906Q-0404	1/4"-19	1/4"-19	25.5	31.3	6	7.5	14	19	CFJ-04-04
-01	DABTM906Q-0406	1/4"-19	3/8"-19	26.50	36.80	6.00	9.90	19.00	22.00	CFJ-06-04
-06	DABTM906Q-0606	3/8"-19	3/8"-19	27.50	36.80	9.00	9.90	19.00	22.00	CFJ-06-06
-08	DABTM906Q-0806	1/2"-14	3/8"-19	37.00	36.80	12.00	9.90	22.00	22.00	CFJ-06-08
-06	DABTM906Q-0608	3/8"-19	1/2"-14	32.50	43.20	9.00	12.30	22.00	27.00	CFJ-08-06
-08	DABTM906Q-0808	1/2"-14	1/2"-14	37.00	43.20	12.00	12.30	22.00	27.00	CFJ-08-08
-08	DABTM906Q-0812	1/2"-14	3/4"-14	39.50	49.30	12.00	15.50	27.00	32.00	CFJ-12-08
-12	DABTM906Q-1212	3/4"-14	3/4"-14	43.00	49.30	16.70	15.50	27.00	32.00	CFJ-12-12
-16	DABTM906Q-1612	1"-11	3/4"-14	50.00	53.00	22.20	15.50	33.30	32.00	CFJ-12-16
-12	DABTM906Q-1216	3/4"-14	1"-11	48.00	53.00	16.70	21.50	33.00	41.00	CFJ-16-12
-16	DABTM906Q-1616	1"-11	1"-11	50.00	53.00	22.20	21.50	33.00	41.00	CFJ-16-16
-16	DABTM906Q-1620	1"-11	1-1/4"-11	55.50	58.00	22.20	27.50	41.00	50.00	CFJ-20-16
-20	DABTM906Q-2020	1-1/4"-11	1-1/4"-11	57.00	58.00	28.60	27.50	41.00	50.00	CFJ-20-20
-24	DABTM906Q-2424	1-1/2"-11	1-1/2"-11	62.50	63.00	33.30	33.00	48.00	55.00	CFJ-24-24
