DABP19081 Adaptor – DME&JDE Group

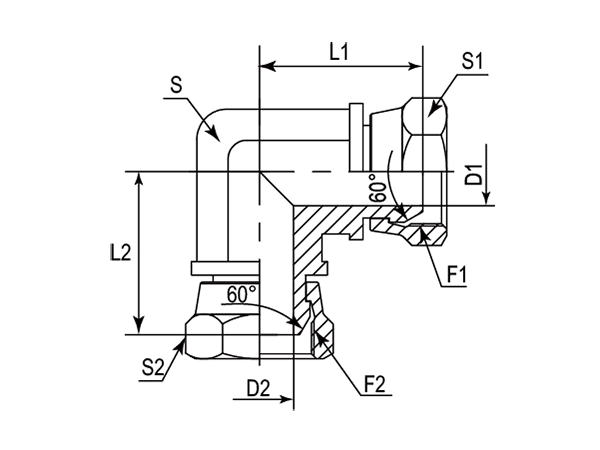

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1	S2
-01	DABP19081-0202	1/8"-28	1/8"-28	22.50	22.50	3.50	3.50	11.00	14.00	14.00
-04	DABP19081-0404	1/4"-19	1/4"-19	24.50	24.50	4.70	4.70	14.00	19.00	19.00
-06	DABP19081-0606	3/8"-19	3/8"-19	27.20	27.20	7.90	7.90	19.00	22.00	22.00
-08	DABP19081-0808	1/2"14	1/2"14	31.50	31.50	11.10	11.10	22.00	27.00	27.00
-12	DABP19081-1212	3/4"-14	3/4"-14	37.90	37.90	16.70	16.70	27.00	32.00	32.00
-16	DABP19081-1616	1"-11	1"-11	46.00	46.00	22.20	22.20	33.00	41.00	41.00
-20	DABP19081-2020	1-1/4"-11	1-1/4"-11	50.00	50.00	26.00	26.00	41.00	50.00	50.00
-24	DABP19081-2424	1-1/2"-11	1-1/2'-11	55.00	55.00	33.30	33.30	48.00	55.00	55.00
-32	DABP19081-3232	2"-11	2"-11	65.00	65.00	45.00	45.00	65.00	70.00	70.00
