DABPMT05M Adaptor – DME&JDE Group

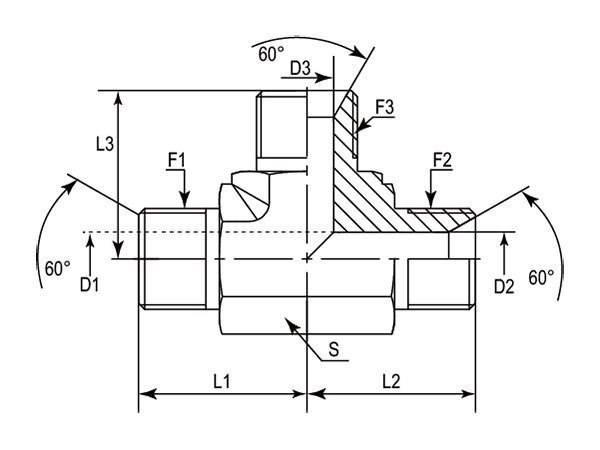

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S
-01	DABPMT05M-0202	1/8"-28	1/8"-28	1/8"-28	20.50	20.50	20.50	3.50	3.50	3.50	11
-04	DABPMT05M-0404	1/4"-19	1/4"-19	1/4"-19	27.00	27.00	27.00	4.70	4.70	4.70	14
-06	DABPMT05M-0606	3/8"-19	3/8"-19	3/8"-19	29.00	29.00	29.00	7.90	7.90	7.90	19
-08	DABPMT05M-0808	1/2"-14	1/2"-14	1/2"-14	35.00	35.00	35.00	11.10	11.10	11.10	22
-10	DABPMT05M-1010	5/8"-14	5/8"-14	5/8'-14	37.00	37.00	37.00	14.30	14.30	14.30	27
-12	DABPMT05M-1212	3/4"-14	3/4"-14	3/4"-14	43.00	43.00	43.00	16.70	16.70	16.70	27
-12	DABPMT05M-121208	3/4"-14	3/4"-14	1/2"-14	43.00	43.00	40.00	16.70	16.70	11.10	27
-16	DABPMT05M-1616	1"-11	1"-11	1"-11	48.00	48.00	48.00	22.20	22.20	22.20	33
-16	DABPMT05M-161208	1"-11	3/4"-14	1/2"-14	46.00	44.50	44.50	22.20	16.70	11.10	33
-20	DABPMT05M-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	51.00	51.00	51.00	28.60	28.60	28.60	41
-24	DABPMT05M-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	60.50	60.50	60.50	33.30	33.30	33.30	48
-32	DABPMT05M-3232	2"-11	2"-11	2"-11	75.00	75.00	75.00	46.00	46.00	46.00	65
