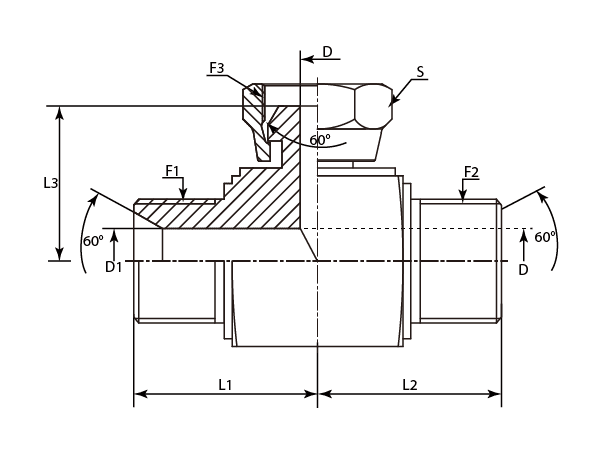

DABPMT081-SQ Adaptor – DME&JDE Group

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3
-01	DABPMT081-0404SQ	1/4"-19	1/4"-19	1/4"-19	22.50	22.50	22.00	4.70	4.70	4.70
-06	DABPMT081-0606SQ	3/8"-19	3/8"-19	3/8"-19	26.00	26.00	25.00	7.90	7.90	7.90
-08	DABPMT081-0808SQ	1/2"-14	1/2"-14	1/2"-14	31.80	31.80	28.50	11.10	11.10	11.10
-12	DABPMT081-1212SQ	3/4"-14	3/4"-14	3/4"-14	35.00	35.00	34.00	16.70	16.70	16.70
-16	DABPMT081-1616SQ	1"-11	1"-11	1"-11	44.00	44.00	41.20	22.20	22.20	22.20
-20	DABPMT081-2020SQ	1-1/4"-11	1-1/4"-11	1-1/4"-11	50.00	50.00	48.00	28.60	28.60	28.60
