DABPM107F Adaptor – DME&JDE Group

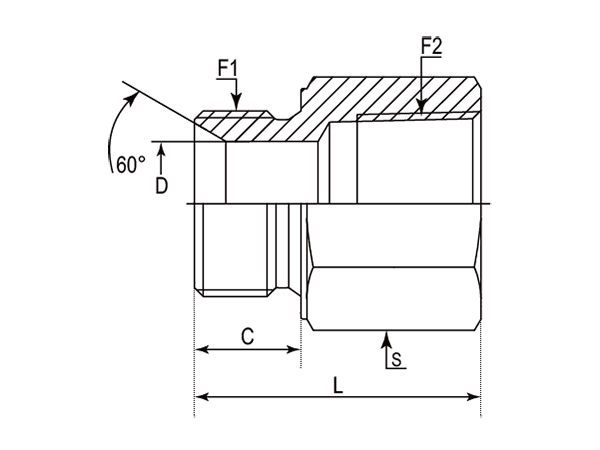

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S
-01	DABPM107F-0402	1/4"-19	1/8"-28	11.00	4.70	32.00	19.00
-01	DABPM107F-0404	1/4"-19	1/4"-19	11.00	4.70	32.50	19.00
-06	DABPM107F-0604	3/8"-19	1/4"-19	12.00	7.90	34.00	22.00
-06	DABPM107F-0606	3/8"-19	3/8"-19	12.00	7.90	31.00	22.00
-08	DABPM107F-0808	1/2"-14	1/2"-14	14.00	11.10	42.50	27.00
-12	DABPM107F-1212	3/4"-14	3/4"-14	16.00	16.70	46.50	32.00
