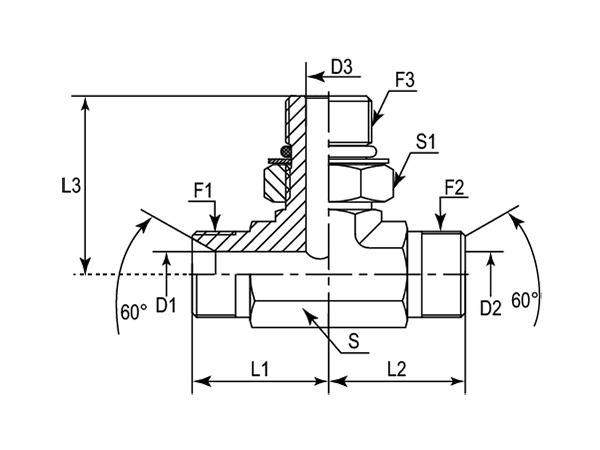

DABPMT305 Adaptor – DME&JDE Group

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	L1	L2	L3	D1	D2	D3	S	S1
-01	DABPMT305-0204	1/8"-28	1/8"-28	7/16"-20	22.50	22.50	26.16	3.50	3.50	4.37	11	14.29
-04	DABPMT305-0406	1/4"-28	1/4"-28	9/16"-18	27.00	27.00	31.80	4.70	4.70	7.54	14	17.46
-06	DABPMT305-0608	3/8"-19	3/8"-19	3/4"-16	29.00	29.00	37.00	7.90	7.90	9.93	19	22.22
-08	DABPMT305-0808	1/2"-14	1/2"-14	3/4"-16	34.00	34.00	39.10	11.10	11.10	9.93	22	22.22
-08	DABPMT305-0810	1/2"-14	1/2"-14	7/8"-14	34.00	34.00	43.20	11.10	11.10	12.29	22	25.40
-12	DABPMT305-1212	3/4"-14	3/4"-14	1-1/16"-12	42.00	42.00	49.30	16.70	16.70	15.47	27	31.75
-16	DABPMT305-1616	1"-11	1"-11	1-5/16"-12	46.00	46.00	52.10	22.20	22.20	21.44	33	38.10
