DABTM1000 Adaptor – DME&JDE Group

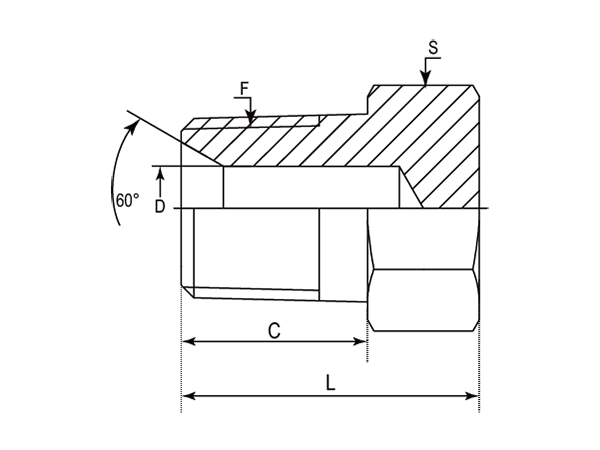

-	Part Number	F (Thread)	C	D	L	S	Cross Number
-01	DABTM1000-0200	1/8"-28	10.00	4.50	16.00	12.00	AS-02
-04	DABTM1000-0400	1/4"-19	14.00	6.00	21.00	14.00	AS-04
-06	DABTM1000-0600	3/8"-19	14.50	9.00	21.00	19.00	AS-06
-08	DABTM1000-0800	1/2"-14	19.00	11.00	27.00	32.00	AS-08
-10	DABTM1000-1000	5/8"-14	19.00	14.00	29.00	24.00	AS-10
-12	DABTM1000-1200	3/4"-14	19.00	16.70	28.00	29.00	AS-12
-16	DABTM1000-1600	1"-11	24.00	22.20	36.00	36.00	AS-16
-20	DABTM1000-2000	1-1/4"-11	25.00	28.50	37.50	46.00	AS-20
-24	DABTM1000-2400	1-1/2"-11	25.00	33.50	40.00	50.00	AS-24
-32	DABTM1000-3200	2"-11	30.00	45.00	45.00	65.00	AS-32
