DABPF152M Adaptor – DME&JDE Group

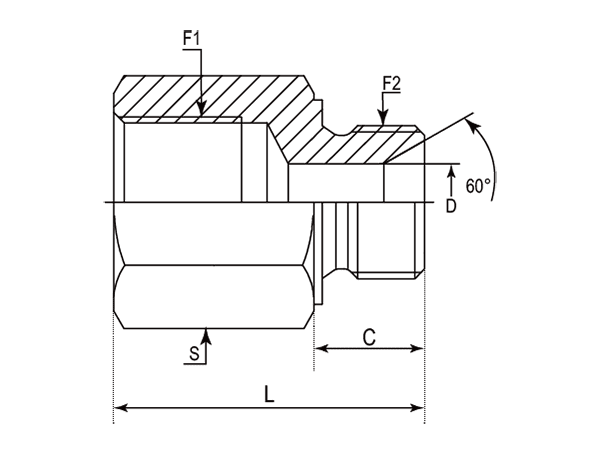

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S
-01	DABPF152M-0412	1/4"-19	M12X1.5	10.00	4.00	30.00	19.00
-01	DABPF152M-0414	1/4"-19	M14X1.5	12.00	6.00	31.00	19.00
-06	DABPF152M-0616	3/8"-19	M16X1.5	12.00	8.00	32.50	22.00
-06	DABPF152M-0618	3/8"-19	M18X1.5	12.00	10.00	32.00	24.00
-08	DABPF152M-0816	1/2"-14	M16X1.5	12.00	8.00	38.00	27.00
-08	DABPF152M-0818	1/2"-14	M18X1.5	12.00	10.00	36.50	27.00
-08	DABPF152M-0822	1/2"-14	M22X1.5	14.00	14.00	38.00	27.00
-12	DABPF152M-1226	3/4"-14	M26X1.5	16.00	15.00	43.50	32.00
-12	DABPF152M-1230	3/4"-14	M30X1.5	16.00	19.00	41.00	36.00
-16	DABPF152M-1638	1"-11	M38X1.5	18.00	25.00	50.00	46.00
