DABPF1081 Adaptor – DME&JDE Group

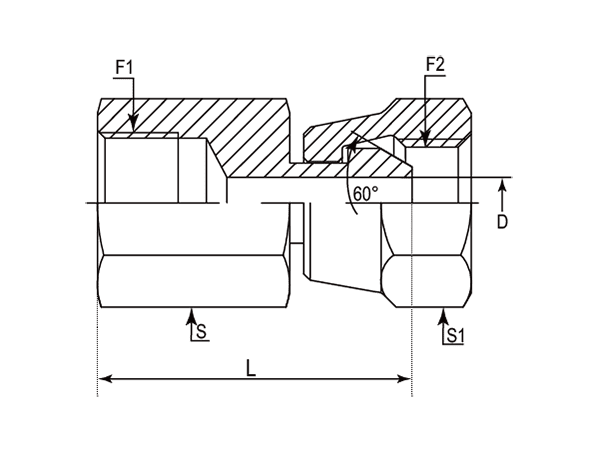

-	Part Number	F1 (Thread)	F2 (Thread)	D	L	S	S1
-01	DABPF1081-0404	1/4"-19	1/4"-19	4.70	30.50	19.00	19.00
-06	DABPF1081-0606	3/8"-19	3/8"-19	7.90	33.00	22.00	22.00
-08	DABPF1081-0808	1/2"-14	1/2"-14	11.10	39.00	27.00	27.00
-08	DABPF1081-0812	1/2"-14	3/4"-14	16.70	42.00	27.00	32.00
-12	DABPF1081-1212	3/4"-14	3/4"-14	16.70	45.00	32.00	32.00
-16	DABPF1081-1616	1"-11	1"-11	22.20	52.00	41.00	41.00
-20	DABPF1081-2020	1-1/4"-11	1-1/4"-11	28.60	56.00	50.00	50.00
-24	DABPF1081-2424	1-1/2"-11	1-1/2"-11	33.3	61	55	55
-32	DABPF1081-3232	2"-11	2"-11	46	63	70	70
