DABPM152JM Adaptor – DME&JDE Group

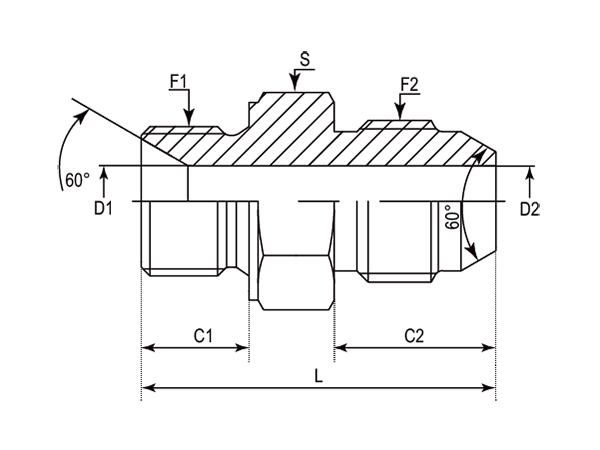

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S	Cross Number
-	-	BSPP	Metric	mm	mm	mm	mm	mm	mm
-01	DABPM152JM-0414	1/4"-19	M14X1.5	11.00	17.00	4.70	4.70	35.00	19.00	1BK-0414
-01	DABPM152JM-0418	1/4"-19	M18X1.5	11.00	18.00	4.70	7.90	38.00	22.00	1BK-0418
-06	DABPM152JM-0618	3/8"-19	M18X1.5	12.00	18.00	7.90	7.90	39.50	22.00	1BK-0618
-06	DABPM152JM-0622	3/8"-19	M22X1.5	12.00	20.00	7.90	12.00	41.00	24.00	1BK-0622
-08	DABPM152JM-0818	1/2"-14	M18X1.5	14.00	18.00	11.10	7.90	44.00	27.00	1BK-0818
-08	DABPM152JM-0822	1/2"-14	M22X1.5	14.00	20.00	11.10	11.10	44.00	27.00	1BK-0822
-10	DABPM152JM-1024	5/8"-14	M24X1.5	16.00	21.50	14.00	14.00	48.00	30.00	1BK-1024
-12	DABPM152JM-1230	3/4"-14	M30X1.5	16.00	26.00	16.70	16.70	52.00	32.00	1BK-1230
-16	DABPM152JM-1633	1"-11	M33X1.5	19.00	30.00	22.20	19.00	60.00	41.00	1BK-1633
