DABTM107FR Adaptor – DME&JDE Group

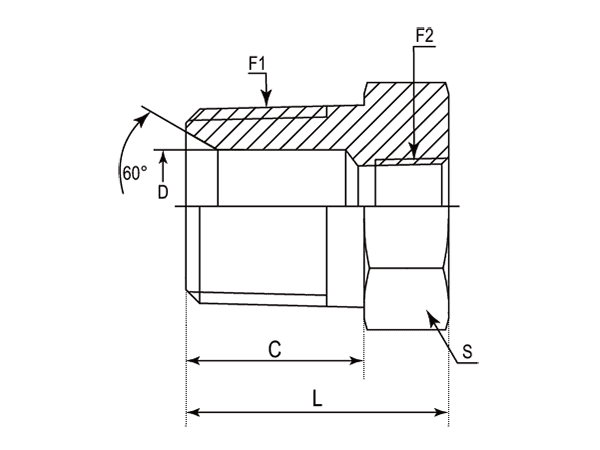

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S	Cross Number
-01	DABTM107FR-0402	1/4"-19	1/8"-28	14.00	6.00	20.50	14.00	AQ-04-02
-06	DABTM107FR-0602	3/8"-19	1/8"-28	14.20	9.00	21.60	19.00	AQ-06-02
-06	DABTM107FR-0604	3/8"-19	1/4"-19	14.20	9.00	21.60	19.00	AQ-06-04
-08	DABTM107FR-0802	1/2"-14	1/8"-28	19.00	12.00	28.00	24.00	AQ-08-02
-08	DABTM107FR-0806	1/2"-14	3/8"-19	19.00	11.00	28.00	24.00	AQ-08-06
-12	DABTM107FR-1204	3/4"-14	1/4"-19	20.00	16.70	29.00	30.00	AQ-12-04
-12	DABTM107FR-1206	3/4"-14	3/8"-19	20.00	16.70	29.00	30.00	AQ-12-06
-12	DABTM107FR-1208	3/4"-14	1/2"-14	20.00	16.70	30.00	30.00	AQ-12-08
-12	DABTM107FR-1216	3/4"-14	1"-11	20.00	16.70	55.50	41.00	AQ-12-16
-16	DABTM107FR-1604	1"-11	1/4"-19	24.00	22.20	34.00	36.00	AQ-16-04
-16	DABTM107FR-1606	1"-11	3/8"-19	24.00	22.20	34.00	36.00	AQ-16-06
-16	DABTM107FR-1608	1"-11	1/2"-14	24.00	22.20	34.00	36.00	AQ-16-08
-16	DABTM107FR-1612	1"-11	3/4"-14	24.00	22.20	34.00	35.00	AQ-16-12
-20	DABTM107FR-2012	1-1/4''-11	3/4"-14	25.00	28.60	37.50	45.00	AQ-20-12
-20	DABTM107FR-2016	1-1/4''-11	1"-11	25.00	28.00	37.50	45.00	AQ-20-16
-24	DABTM107FR-2420	1-1/2''-11	1-1/4''-11	25.00	33.30	40.00	50.00	AQ-24-20
-32	DABTM107FR-3216	2"-11	1"-11	30.00	46.00	45.00	65.00	AQ-32-16
-32	DABTM107FR-3224	2"-11	1-1/2''-11	30.00	45.20	45.00	65.00	AQ-32-24
