DABPM128M Adaptor – DME&JDE Group

Technical Data of DABPM128M

* Filter the F1 Thread through selecting the -XX options

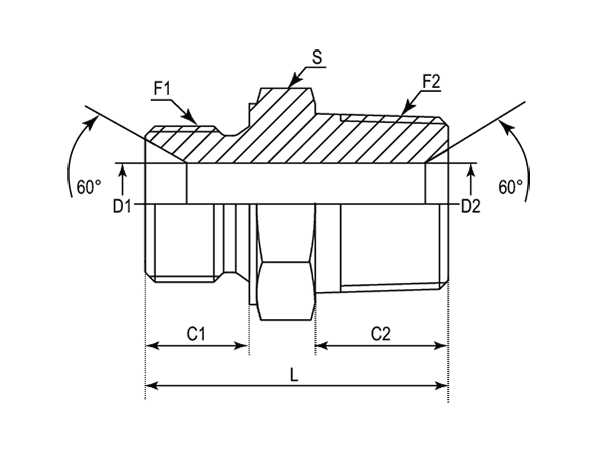

A drawing of DABPM128M hydraulic adaptor.

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S
-	-	BSPP	NPTF	mm	mm	mm	mm	mm	mm
-01	DABPM128M-0202	1/8"-28	1/8"-27	9.00	9.65	3.50	3.50	25.00	14.00
-01	DABPM128M-0204	1/8"-28	1/4"-18	9.00	14.22	3.50	7.14	31.50	17.00
-04	DABPM128M-0402	1/4"-19	1/8"-27	11.00	9.65	4.70	4.70	28.00	19.00
-04	DABPM128M-0404	1/4"-19	1/4"-18	11.00	14.22	4.70	7.14	33.00	19.00
-04	DABPM128M-0406	1/4"-19	3/8"-18	11.00	14.22	4.70	10.31	34.60	19.00
-04	DABPM128M-0408	1/4"-19	1/2"-14	11.00	19.05	4.70	13.49	39.00	22.22
-06	DABPM128M-0604	3/8"-19	1/4"-18	12.00	14.22	7.14	7.14	36.70	22.00
-06	DABPM128M-0606	3/8"-19	3/8"-18	12.00	14.22	7.90	10.31	37.50	22.00
-06	DABPM128M-0608	3/8"-19	1/2"-14	12.00	19.05	7.90	13.49	40.00	22.22
-08	DABPM128M-0806	1/2"-14	3/8"-18	14.00	14.22	10.31	10.31	40.00	27.00
-08	DABPM128M-0808	1/2"-14	1/2"-14	14.00	19.05	11.10	13.49	45.50	27.00
-08	DABPM128M-0812	1/2"-14	3/4"-14	14.00	19.05	11.10	18.26	45.70	28.57
-08	DABPM128M-0816	1/2"-14	1"-11-1/2	14.00	23.88	11.10	22.20	51.50	36.00
-10	DABPM128M-1008	5/8"-14	1/2"-14	16.00	19.05	13.49	13.49	47.00	30.00
-10	DABPM128M-1012	5/8"-14	3/4"-14	16.00	19.05	14.00	18.26	47.00	30.00
-12	DABPM128M-1206	3/4"-14	3/8"-18	16.00	14.22	16.70	10.31	43.00	32.00
-12	DABPM128M-1208	3/4"-14	1/2"-14	16.00	19.05	16.70	13.49	48.00	32.00
-12	DABPM128M-1212	3/4"-14	3/4"-14	16.00	19.05	16.70	16.70	49.00	32.00
-12	DABPM128M-1216	3/4"-14	1"-11-1/2	16.00	23.88	16.70	22.20	53.50	36.00
-16	DABPM128M-1612	1"-11	3/4"-14	19.00	19.05	22.20	18.26	52.00	41.00
-16	DABPM128M-1616	1"-11	1"-11-1/2	19.00	23.88	22.20	22.20	57.00	41.00
-16	DABPM128M-1620	1"-11	1-1/4"-11-1/2	19.00	24.64	22.20	31.75	58.50	46.00
-20	DABPM128M-2016	1-1/4"-11	1"-11-1/2	20.00	23.88	28.60	23.83	60.00	50.00
-20	DABPM128M-2020	1-1/4"-11	1-1/4"-11-1/2	20.00	24.64	28.60	31.75	59.50	50.00
-20	DABPM128M-2024	1-1/4"-11	1-1/2"-11-1/2	20.00	25.40	28.60	38.10	62.00	50.80
-24	DABPM128M-2420	1-1/2"-11	1-1/4"-11-1/2	22.00	24.64	31.80	31.75	63.50	55.00
-24	DABPM128M-2424	1-1/2"-11	1-1/2"-11-1/2	22.00	25.40	33.30	38.10	64.00	55.00
-24	DABPM128M-2432	1-1/2"-11	2"-11-1/2	22.00	26.16	33.30	49.23	66.00	63.50/65.00
-32	DABPM128M-3224	2"-11	1 1/2"-11-1/2	25.00	25.40	46.00	38.10	68.00	70.00
