DABPD0000 NUT BSPP

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • DSealing TypeWelding
  • 0Compatible TypeTube
  • 000Other FeaturesNut/Plug
  • DME&JDE Code: DABPD0000
  • Product Type: hydraulic adaptor
  • Adaptor Standard: BSP
  • Thread Types: BSPP
  • Other Features: Nut/Plug
  • Sealing Type: Welding
Technical Data of DABPD0000
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16

* Filter the F1 Thread through selecting the -XX options

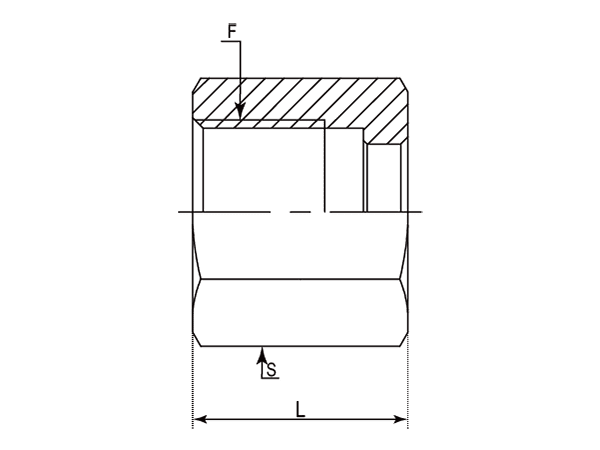

A drawing of DABPD0000 hydraulic adaptor.
- Part Number F (Thread) L S
- - BSPP mm mm
-01 DABPD0000-0400 1/4"-19 15.00 19.00
-06 DABPD0000-0600 3/8"-19 17.00 22.00
-08 DABPD0000-0800 1/2"-14 20.10 27.00
-10 DABPD0000-1000 5/8"-14 21.80 30.00
-12 DABPD0000-1200 3/4"-14 22.60 32.00
-16 DABPD0000-1600 1"-11 27.60 41.00
