DABPM905M-SQ Adaptor – DME&JDE Group

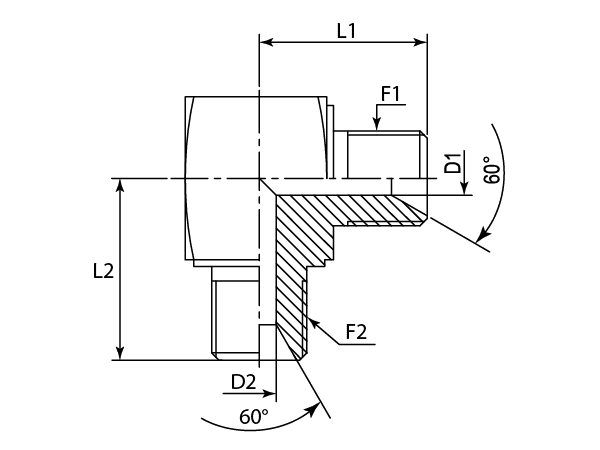

-	PART NUMBER	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2
-01	DABPM905M-0404-SQ	1/4"-19	1/4"-19	22.50	22.50	4.70	4.70
-06	DABPM905M-0606-SQ	3/8"-19	3/8"-19	26.00	26.00	7.90	7.90
-08	DABPM905M-0808-SQ	1/2"-14	1/2"-14	30.00	30.00	11.10	11.10
-12	DABPM905M-1212-SQ	3/4"-14	3/4"-14	34.00	34.00	16.70	16.70
-16	DABPM905M-1616-SQ	1"-11	1"-11	44.00	44.00	22.00	22.00
