DABPMT05T Branch Bulkhead Tee Connector BSPP Male 60° - BSPP Male 60°

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • MConnection TypeMale
  • TAdaptor StructureBranch Tee
  • 05Thread TypesBSPP
  • TConnection TypeBulkhead
  • DME&JDE Code: DABPMT05T
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: Branch Tee
  • Connection Type: Adjustable Male × Male × Male
  • Thread Types: BSPP 60° × BSPP 60° × BSPP 60°
  • Other Features: Bulkhead
Technical Data of DABPMT05T
  • -02
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

* Filter the F1 Thread through selecting the -XX options

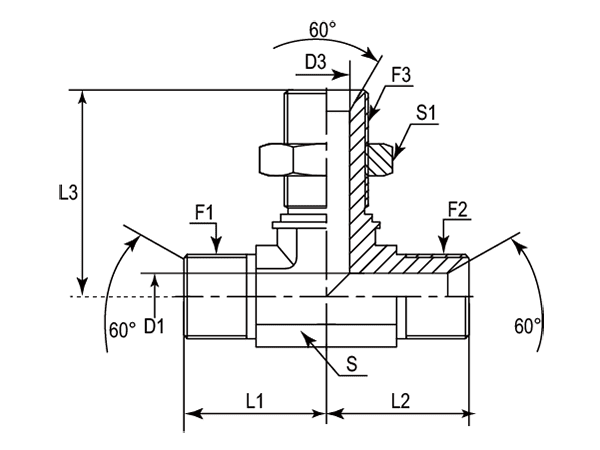

A drawing of DABPMT05T hydraulic adaptor.
- PART NUMBER F1 (Thread) F2 (Thread) F3 (Thread) L1 L2 L3 D1 D2 D3 S S1
- - BSPP BSPP BSPP mm mm mm mm mm mm mm mm
-01 DABPMT05T-0202 1/8"-28 1/8"-28 1/8"-28 20.00 20.00 37.00 3.50 3.50 3.50 11 14
-04 DABPMT05T-0404 1/4"-19 1/4"-19 1/4"-19 26.00 26.00 44.00 4.70 4.70 4.70 14 19
-06 DABPMT05T-0606 3/8"-19 3/8"-19 3/8"-19 30.00 30.00 49.00 7.90 7.90 7.90 19 22
-08 DABPMT05T-0808 1/2"-14 1/2"-14 1/2"-14 34.00 34.00 55.00 11.10 11.10 11.10 22 27
-10 DABPMT05T-1010 5/8"-14 5/8"-14 5/8"-14 38.00 38.00 59.00 14.30 14.30 14.30 22 32
-12 DABPMT05T-1212 1/2"-14 1/2"-14 1/2"-14 42.00 42.00 63.00 16.70 16.70 16.70 27 32
-16 DABPMT05T-1616 1"-11 1"-11 1"-11 47.00 47.00 69.00 22.20 22.20 22.20 33 41
-20 DABPMT05T-2020 1-1/4"-11 1-1/4"-11 1-1/4"-11 52.00 52.00 77.00 28.60 28.60 28.60 41 50
-24 DABPMT05T-2424 1-1/2"-11 1-1/2"-11 1-1/2"-11 60.00 60.00 87.00 33.30 33.30 33.30 48 55
-32 DABPMT05T-3232 2"-11 2"-11 2"-11 64.00 64.00 97.00 46.00 46.00 46.00 65 70
