DABPM407M Adaptor – DME&JDE Group

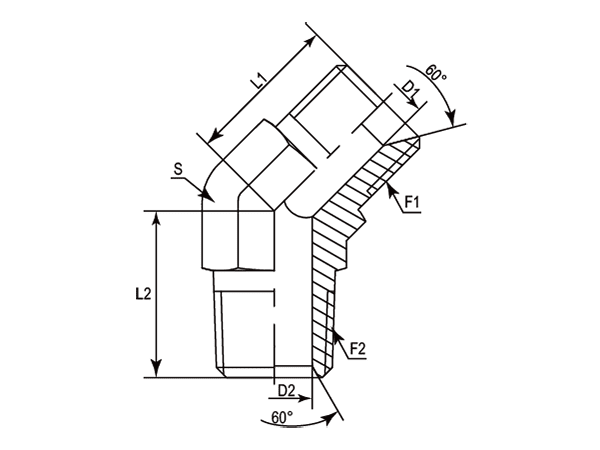

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S
-01	DABPM407M-0404	1/4"-19	1/4"-19	21.00	21.00	4.70	6.00	14.00
-06	DABPM407M-0606	3/8"-19	3/8"-19	23.00	23.00	7.90	9.00	19.00
-08	DABPM407M-0808	1/2"-14	1/2"-14	27.50	27.50	11.10	12.00	22.00
-12	DABPM407M-1212	3/4"-14	3/4"-14	30.50	30.50	16.00	16.00	27.00
-16	DABPM407M-1616	1"-11	1"-11	37.50	37.50	22.20	22.20	33.00
