DABPLN BSPP Bulkhead Nut

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • LNOther FeaturesBulkheads
  • DME&JDE Code: DABPLN
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: straight
  • Thread Types: BSPP Bulkhead Nut
  • Other Features: Bulkhead
Technical Data of DABPLN
  • -02
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24
  • -32

* Filter the F1 Thread through selecting the -XX options

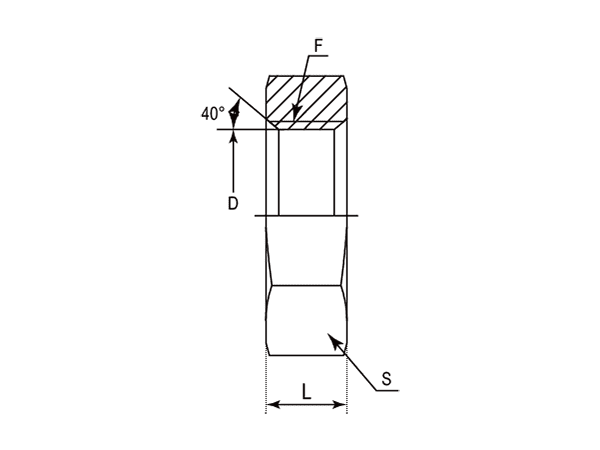

A drawing of DABPLN hydraulic adaptor.
- Part Number F (Thread) D L S
- - BSPP mm mm mm
-01 DABPLN-0200 1/8"-28 8.60 5.50 14.00
-04 DABPLN-0400 1/4"-19 11.50 6.50 19.00
-06 DABPLN-0600 3/8"-19 15.00 7.00 22.00
-08 DABPLN-0800 1/2"-14 18.70 8.00 27.00
-10 DABPLN-1000 5/8"-14 20.70 9.00 30.00
-12 DABPLN-1200 3/4"-14 24.12 10.50 32.00
-16 DABPLN-1600 1"-11 30.40 10.50 41.00
-20 DABPLN-2000 1-1/4''-11 39.00 13.00 50.00
-24 DABPLN-2400 1-1/2''-11 45.00 15.00 55.00
-32 DABPLN-3200 2"-11 56.80 15.00 70.00
