DABPM128F Adaptor – DME&JDE Group

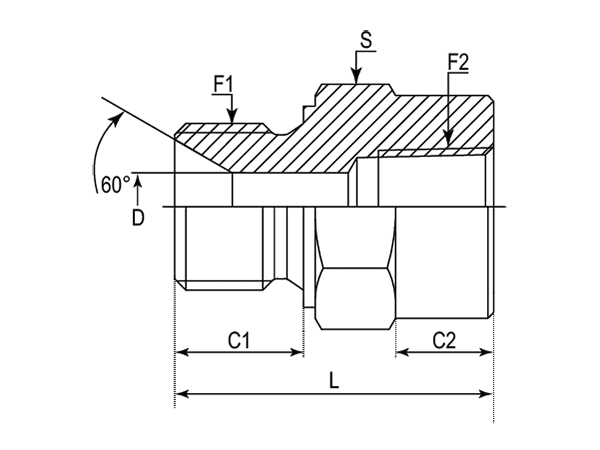

-	PART NUMBER	F1 (Thread)	F2 (Thread)	C1	C2	D	L	S
-01	DABPM128F-0202	1/8"-28	1/8"-27	9.00	6.35	3.50	24.50	16.00
-01	DABPM128F-0204	1/8"-28	1/4"-18	9.00	10.92	3.50	29.00	19.05
-04	DABPM128F-0402	1/4"-19	1/8"-27	11.00	6.35	4.70	26.00	19.00
-04	DABPM128F-0404	1/4"-19	1/4"-18	11.00	10.90	4.70	31.00	19.00
-04	DABPM128F-0406	1/4"-19	3/8"-18	11.00	10.92	4.70	32.50	22.00
-04	DABPM128F-0408	1/4"-19	1/2"-14	11.00	14.22	4.70	39.00	28.58
-06	DABPM128F-0604	3/8"-19	1/4"-18	12.00	10.92	7.90	32.50	22.00
-06	DABPM128F-0606	3/8"-19	3/8"-18	12.00	10.92	7.90	32.50	22.23
-06	DABPM128F-0608	3/8"-19	1/2"-14	12.00	14.22	7.90	40.00	28.58
-08	DABPM128F-0804	1/2"-14	1/4"-18	14.00	10.92	11.10	35.50	27.00
-08	DABPM128F-0806	1/2"-14	3/8"-18	14.00	10.92	11.10	34.00	27.00
-08	DABPM128F-0808	1/2"-14	1/2"-14	14.00	14.22	11.10	38.90	28.58
-12	DABPM128F-1208	3/4"-14	1/2"-14	16.00	14.22	16.70	41.60	32.00
-12	DABPM128F-1212	3/4"-14	3/4"-14	16.00	14.22	16.70	42.50	36.00
-16	DABPM128F-1612	1"-11	3/4"-14	19.00	14.22	22.20	49.00	41.28
-16	DABPM128F-1616	1"-11	1"-11-1/2	19.00	17.53	22.20	34.00	41.28
-20	DABPM128F-2016	1-1/4''-11	1"-11-1/2	20.00	17.53	28.60	51.00	50.80
-20	DABPM128F-2020	1-1/4''-11	1"1/4-11-1/2	20.00	17.53	28.60	60.00	50.80
-24	DABPM128F-2420	1-1/2''-11	1-1/4''-11-1/2	22.00	17.53	33.30	57.50	55.00
-24	DABPM128F-2424	1-1/2''-11	1-1/2''-11-1/2	22.00	17.53	33.30	58.00	60.33
-32	DABPM128F-3224	2"-11	1-1/2''-11-1/2	25.00	17.53	46.00	63.50	70.00
-32	DABPM128F-3232	2"-11	2"-11-1/2	25.00	16.00	46.00	67.00	70.00
-40	DABPM128F-4040	2-1/2''-11	2-1/2''-8	32.00	19.50	58.00	78.50	90.00
