DABPM952Y 90° Adjustable Long Elbow BSPP Male 60° - Metric Male + O Ring + Retaining Ring

  • DCompanyDME
  • AProduct RangeAdaptor
  • BPThread TypesBSPP
  • MConnection TypeMale
  • 9Adaptor Structure90° Elbow
  • 52Thread TypesMetric
  • YConnection TypeMale + Long O Ring + Retaining Ring
  • DME&JDE Code: DABPM952Y
  • Product Type: hydraulic adaptor
  • Standard: BSP
  • Structure: 90° Elbow
  • Connection Type: Adjustable Male × Male
  • Thread Types: BSPP 60° × Metric Long O Ring + Retaining Ring
  • Sealing Method: Long O Ring + Retaining Ring
Technical Data of DABPM952Y
  • -02
  • -04
  • -06
  • -08
  • -10
  • -12
  • -16
  • -20
  • -24

* Filter the F1 Thread through selecting the -XX options

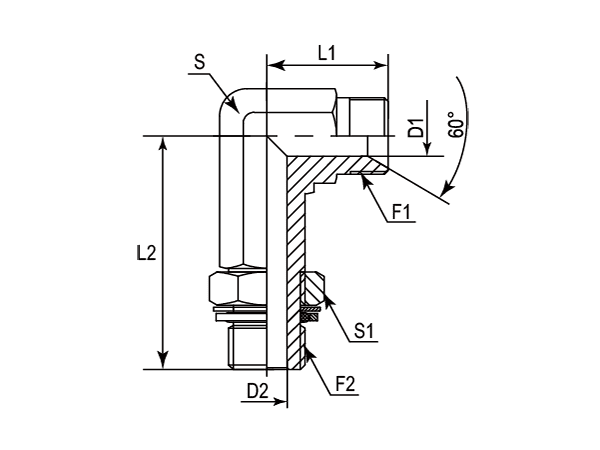

A drawing of DABPM952Y hydraulic adaptor.
- Part Number F1 (Thread) F2 (Thread) C1 C2 D1 D2 L S
- - BSPP Metric mm mm mm mm mm mm
-01 DABPM952Y-0210 1/8"-28 M10X1 22.00 46.00 3.50 4.50 11.00 14.00
-01 DABPM952Y-0212 1/8"-28 M12X1.5 25.00 56.50 3.50 6.00 14.00 17.00
-04 DABPM952Y-0412 1/4"-19 M12X1.5 27.00 56.50 4.70 6.00 14.00 17.00
-04 DABPM952Y-0414 1/4"-19 M14X1.5 27.00 56.50 4.70 7.50 14.00 19.00
-06 DABPM952Y-0616 3/8"-19 M16X1.5 29.00 65.00 7.90 9.00 19.00 22.00
-06 DABPM952Y-0618 3/8"-19 M18X1.5 29.00 67.00 7.90 11.00 19.00 24.00
-08 DABPM952Y-0818 1/2"-14 M18X1.5 34.00 76.00 11.10 11.00 22.00 24.00
-08 DABPM952Y-0822 1/2"-14 M22X1.5 34.00 78.00 11.10 14.00 22.00 27.00
-10 DABPM952Y-1022 5/8"-14 M22X1.5 37.00 78.00 14.30 14.00 22.00 27.00
-12 DABPM952Y-1222 3/4"-14 M22X1.5 41.00 93.00 16.70 14.00 27.00 27.00
-12 DABPM952Y-1226 3/4"-14 M26X1.5 41.00 95.00 16.70 17.00 27.00 32.00
-12 DABPM952Y-1227 3/4"-14 M27X2 41.00 95.00 16.70 18.00 27.00 32.00
-16 DABPM952Y-1627 1"-11 M27X2 46.00 105.00 22.20 18.00 33.00 32.00
-16 DABPM952Y-1633 1"-11 M33X2 46.00 105.00 22.20 23.00 33.00 41.00
-20 DABPM952Y-2042 1-1/4"-11 M42X2 51.00 124.00 28.60 30.00 41.00 50.00
-24 DABPM952Y-2448 1-1/2"-11 M48X2 59.00 141.00 33.30 36.00 48.00 55.00
