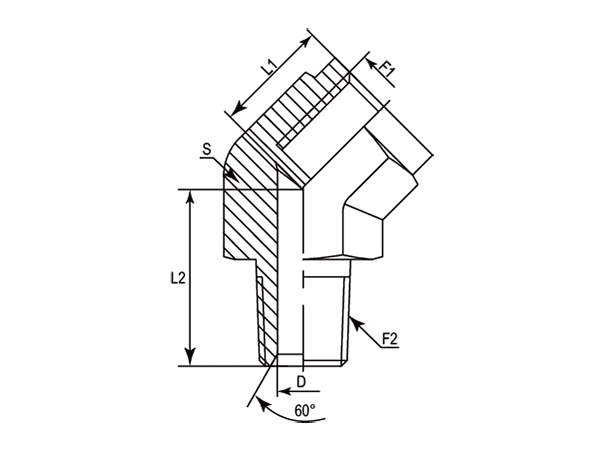

DABPF428M Adaptor – DME&JDE Group

-	PART NUMBER	F1 (Thread)	F2 (Thread)	L1	L2	D	S
-01	DABPF428M-0202	1/8"-28	1/8"-27	13.00	18.00	4.78	14.00
-04	DABPF428M-0404	1/4"-19	1/4"-18	18.00	26.50	7.14	19.00
-06	DABPF428M-0606	3/8"-19	3/8"-18	19.50	27.00	10.31	22.00
-08	DABPF428M-0808	1/2"-14	1/2"-14	24.50	34.00	13.49	27.00
-12	DABPF428M-1212	3/4"-14	3/4"-14	26.00	35.00	18.26	33.00
-16	DABPF428M-1616	1"-11	1"-11-1/2	31.00	44.00	23.83	41.00
-20	DABPF428M-2020	1-1/4"-11	1-1/4"-11-1/2	37.00	45.50	31.75	48.00
-24	DABPF428M-2424	1-1/2"-11	1-1/2"-11-1/2	43.00	53.00	38.10	65.00
-32	DABPF428M-3232	2"-11	2"-11-1/2	55.00	57.00	49.23	70.00
