DABP19081-B Adaptor – DME&JDE Group

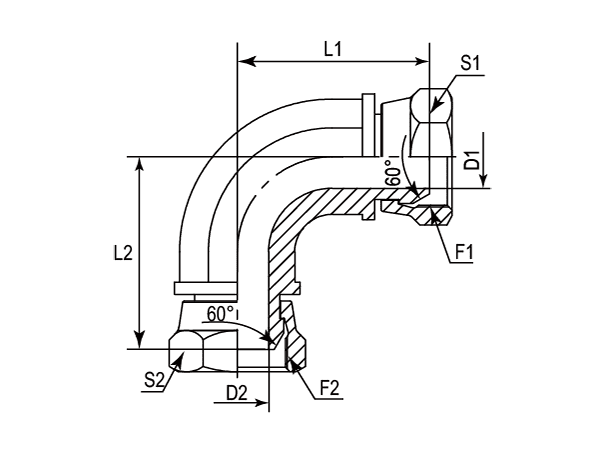

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S1	S2
-01	DABP19081-0404B	1/4"-19	1/4"-19	30.00	30.00	4.00	4.00	19.00	19.00
-06	DABP19081-0606B	3/8"-19	3/8"-19	36.50	36.50	7.00	7.00	22.00	22.00
-08	DABP19081-0808B	1/2"14	1/2"14	45.00	45.00	10.00	10.00	27.00	27.00
-10	DABP19081-1010B	5/8"-14	5/8"-14	53.00	53.00	12.00	12.00	30.00	30.00
-12	DABP19081-1212B	3/4"-14	3/4"-14	58.00	58.00	15.00	15.00	32.00	32.00
-16	DABP19081-1616B	1"-11	1"-11	73.00	73.00	19.00	19.00	41.00	41.00
-20	DABP19081-2020B	1-1/4"-11	1-1/4"-11	92.00	92.00	26.00	26.00	50.00	50.00
