DABTM152FR Adaptor – DME&JDE Group

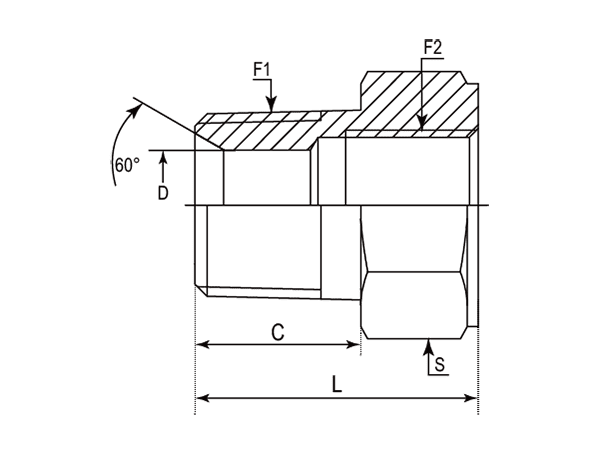

-	Part Number	F1 (Thread)	F2 (Thread)	C	D	L	S
-01	DABTM152FR-0206	1/8"-28	M6X1	10.00	4.50	15.00	14.00
-04	DABTM152FR-0408	1/4"-19	M8X1	14.00	6.00	19.00	17.00
-06	DABTM152FR-0612	3/8"-19	M12X1.5	15.00	9.00	21.00	22.00
-08	DABTM152FR-0816	1/2"-14	M16X1.5	19.00	13.00	27.00	22.00
-12	DABTM152FR-1214	3/4"-14	M14X1.5	20.00	16.70	27.00	30.00
-12	DABTM152FR-1216	3/4"-14	M16X1.5	20.00	16.70	27.00	30.00
-16	DABTM152FR-1616	1"-11	M16X1.5	24.00	22.20	32.00	36.00
-16	DABTM152FR-1620	1"-11	M20X1.5	24.00	22.20	32.00	36.00
-20	DABTM152FR-2022	1-1/4''-11	M22X1.5	25.00	28.60	34.00	46.00
-20	DABTM152FR-2026	1-1/4''-11	M26X1.5	25.00	28.60	34.00	46.00
-24	DABTM152FR-2426	1-1/4''-11	M26X1.5	25.00	33.30	35.00	50.00
