DABPM9305 Adaptor – DME&JDE Group

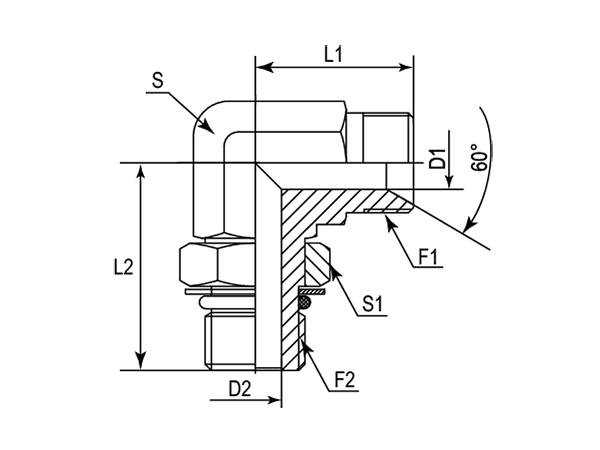

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	D1	D2	S	S1
-01	DABPM9305-0204	1/8"-28	7/16"-20	22.50	26.16	3.50	4.37	11.10	14.29
-01	DABPM9305-0205	1/8"-28	1/2"-20	24.00	28.70	3.50	5.94	14.27	15.88
-04	DABPM9305-0404	1/4"-19	7/16"-20	27.00	30.20	4.70	4.37	14.00	14.00
-04	DABPM9305-0405	1/4"-19	1/2"-20	27.00	28.70	4.70	5.94	14.27	15.88
-04	DABPM9305-0406	1/4"-19	9/16"-18	27.00	31.80	4.70	7.54	14.00	17.46
-06	DABPM9305-0606	3/8"-19	9/16"-18	29.00	33.80	7.90	7.54	19.00	17.46
-06	DABPM9305-0608	3/8"-19	3/4"-16	31.00	37.00	7.90	9.93	19.00	22.00
-08	DABPM9305-0808	1/2"-14	3/4"-16	34.00	40.50	11.10	9.93	22.00	22.00
-08	DABPM9305-0810	1/2"-14	7/8"-14	34.00	43.20	11.10	12.29	22.22	25.40
-12	DABPM9305-1212	3/4"-14	1-1/16"-12	42.00	49.30	16.70	15.47	27.00	31.75
-16	DABPM9305-1616	1"-11	1-5/16"-12	46.00	52.10	22.20	21.44	33.00	38.10
-20	DABPM9305-2020	1-1/4"-11	1-5/8"-12	52.00	57.30	28.60	27.38	41.38	50.00
-24	DABPM9305-2424	1-1/2"-11	1-7/8"-12	60.00	61.00	33.30	33.32	48.00	53.98
