DABPFT06Q Adaptor – DME&JDE Group

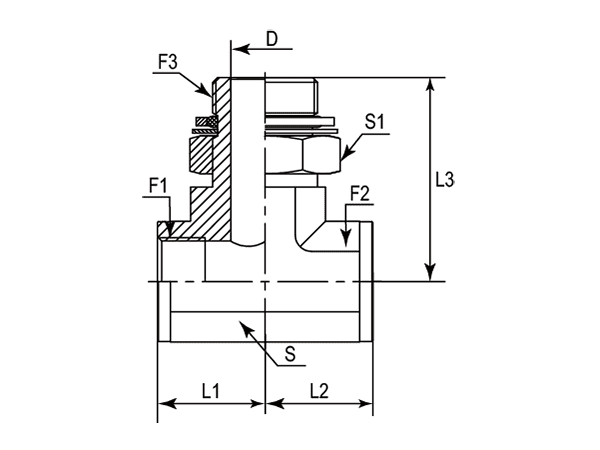

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	D	L1	L2	L3	S	S1
-01	DABPFT06Q-0202	1/8"-28	1/8"-28	1/8"-28	4.40	16.80	16.80	28.00	14	14
-04	DABPFT06Q-0404	1/4"-19	1/4"-19	1/4"-19	7.50	26.50	26.50	37.00	22	19
-06	DABPFT06Q-0606	3/8"-19	3/8"-19	3/8"-19	9.90	26.00	26.00	39.50	22	22
-08	DABPFT06Q-0808	1/2"-14	1/2"-14	1/2"-14	12.30	32.00	32.00	45.50	27	27
-12	DABPFT06Q-1212	3/4"-14	3/4"-14	3/4"-14	15.50	36.00	36.00	52.00	33	36
-16	DABPFT06Q-1616	1"-11	1"-11	1"-11	21.50	42.00	42.00	57.00	41	41
-20	DABPFT06Q-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	27.50	43.00	43.00	61.00	48	50
-24	DABPFT06Q-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	33.00	53.00	53.00	75.00	65	55
-32	DABPFT06Q-3232	2"-11	2"-11	2"-11	56.80	60.00	60.00	75.00	72	70
