DABPM1525 Adaptor – DME&JDE Group

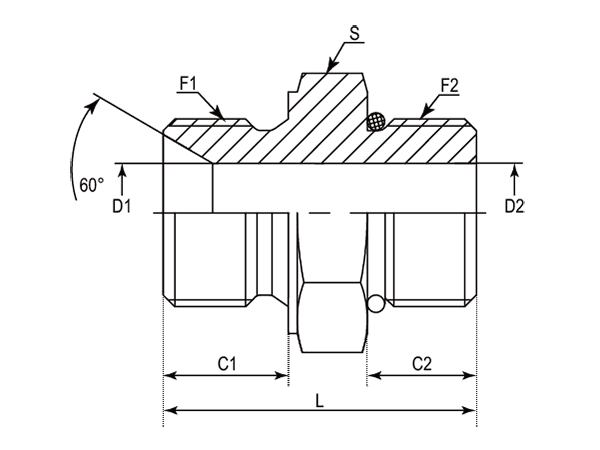

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S
-01	DABPM1525-0210	1/8"-28	M10X1	9.00	9.00	3.50	3.50	26.00	14.00
-01	DABPM1525-0212	1/8"-28	M12X1.5	9.00	11.00	3.50	6.00	28.00	17.00
-04	DABPM1525-0412	1/4"-19	M12X1.5	11.00	11.00	4.70	4.70	31.00	19.00
-04	DABPM1525-0416	1/4"-19	M16X1.5	11.00	12.00	4.70	7.00	32.50	19.00
-06	DABPM1525-0618	3/8"-19	M18X1.5	12.00	12.50	7.90	10.00	35.00	24.00
-08	DABPM1525-0820	1/2"-14	M20X1.5	14.00	12.50	11.10	11.10	38.00	27.00
-12	DABPM1525-1226	3/4"-14	M26X1.5	16.00	16.00	16.70	16.70	42.50	32.00
-16	DABPM1525-1627	1"-11	M27X2	19.00	16.00	22.20	18.00	50.00	41.00
-20	DABPM1525-2042	1-1/4''-11	M42X2	20.00	16.00	28.60	28.60	53.00	50.00
-24	DABPM1525-2448	1-1/2''-11	M48X2	22.00	17.50	33.30	33.30	56.50	55.00
