DABTML06Q Adaptor – DME&JDE Group

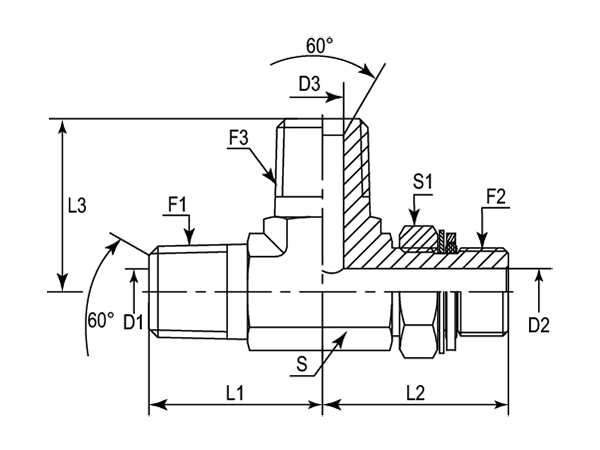

-	PART NUMBER	F1 (Thread)	F2 (Thread)	F3 (Thread)	D1	D2	D3	L1	L2	L3	S	S1
-01	DABTML06Q-0404	1/4"-19	1/4"-19	1/4"-19	6.00	7.50	6.00	27.70	31.50	27.70	14	19
-06	DABTML06Q-0606	3/8"-19	3/8"-19	3/8"-19	9.00	9.90	9.00	31.00	36.50	31.00	19	22
-08	DABTML06Q-0808	1/2"-14	1/2"-14	1/2"-14	12.00	12.30	12.00	37.50	43.00	37.50	22	27
-10	DABTML06Q-1010	5/8"-14	5/8"-14	5/8"-14	14.00	14.00	14.00	46.00	39.00	46.00	27	30
-12	DABTML06Q-1212	3/4"-14	3/4"-14	3/4"-14	16.70	15.50	16.70	40.40	49.00	40.40	27	36
-16	DABTML06Q-1616	1"-11	1"-11	1"-11	22.20	21.50	22.20	50.00	52.00	50.00	33	41
-20	DABTML06Q-2020	1-1/4"-11	1-1/4"-11	1-1/4"-11	28.60	27.50	28.60	60.50	58.00	60.50	41	50
-24	DABTML06Q-2424	1-1/2"-11	1-1/2"-11	1-1/2"-11	33.30	33.00	33.30	67.10	62.00	67.10	48	55
