DABPF905F Adaptor – DME&JDE Group

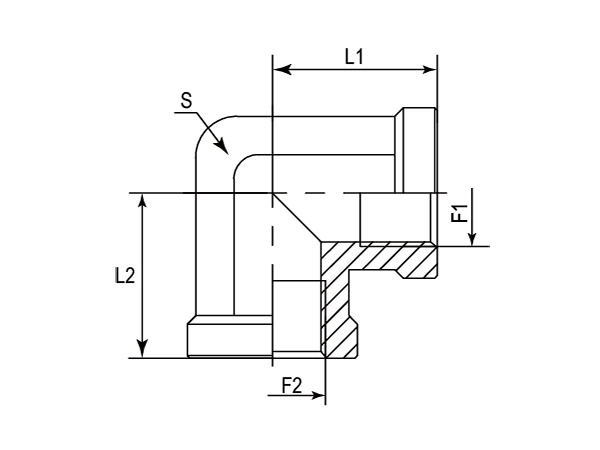

-	Part Number	F1 (Thread)	F2 (Thread)	L1	L2	S
-01	DABPF905F-0202	1/8"-28	1/8"-28	20.00	20.00	14.00
-04	DABPF905F-0404	1/4"-19	1/4"-19	22.00	22.00	19.00
-06	DABPF905F-0606	3/8"-19	3/8"-19	26.00	26.00	22.00
-08	DABPF905F-0808	1/2"-14	1/2"-14	32.00	32.00	27.00
-12	DABPF905F-1212	3/4"-14	3/4"-14	36.00	36.00	33.00
-16	DABPF905F-1616	1"-11	1"-11	42.00	42.00	41.00
-20	DABPF905F-2020	1-1/4"	1-1/4"	43.00	43.00	48.00
-24	DABPF905F-2424	1-1/2"	1-1/2"	53.00	53.00	65.00
-32	DABPF905F-3232	2"-11	2"-11	60.00	60.00	72.00
