DABPM106Q Adaptor – DME&JDE Group

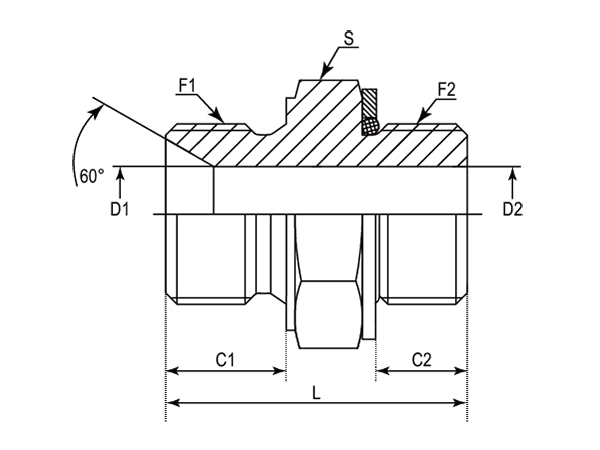

-	Part Number	F1 (Thread)	F2 (Thread)	C1	C2	D1	D2	L	S
-01	DABPM106Q-0202	1/8"-28	1/8"-28	9.00	7.60	3.50	3.50	23.50	14.00
-04	DABPM106Q-0404	1/4"-19	1/4"-19	11.00	11.20	4.70	4.70	31.00	19.00
-06	DABPM106Q-0606	3/8"-19	3/8"-19	12.00	11.20	7.90	7.90	34.00	22.00
-08	DABPM106Q-0808	1/2"-14	1/2"-14	14.00	14.50	11.10	11.10	40.00	27.00
-10	DABPM106Q-1010	5/8"-14	5/8"-15	16.00	14.50	12.30	12.30	40.00	32.00
-12	DABPM106Q-1212	3/4"-14	3/4"-14	16.00	14.50	15.50	15.50	44.00	32.00
-16	DABPM106Q-1616	1"-11	1"-11	19.00	18.60	21.50	21.50	55.00	46.00
-20	DABPM106Q-2020	1-1/4"-11	1-1/4"-11	20.00	18.60	27.50	27.50	53.00	50.00
-24	DABPM106Q-2424	1-1/2"-11	1-1/2"-11	22.00	18.60	33.00	33.00	63.00	55.00
